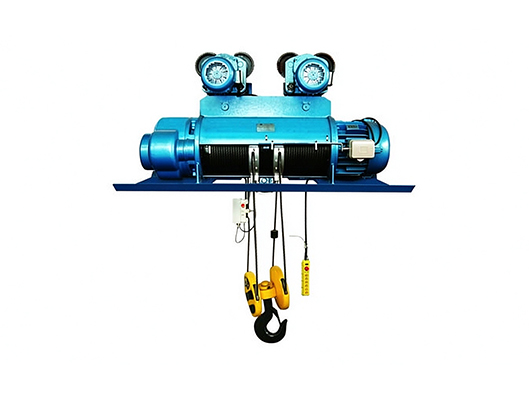

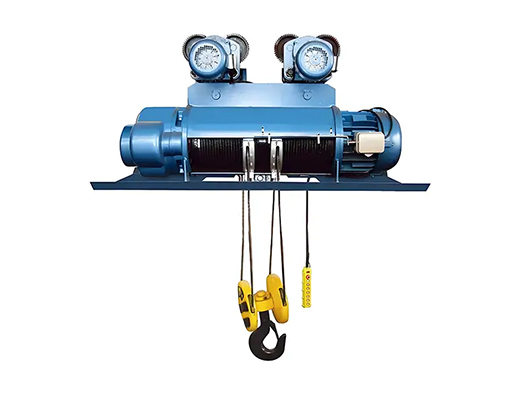

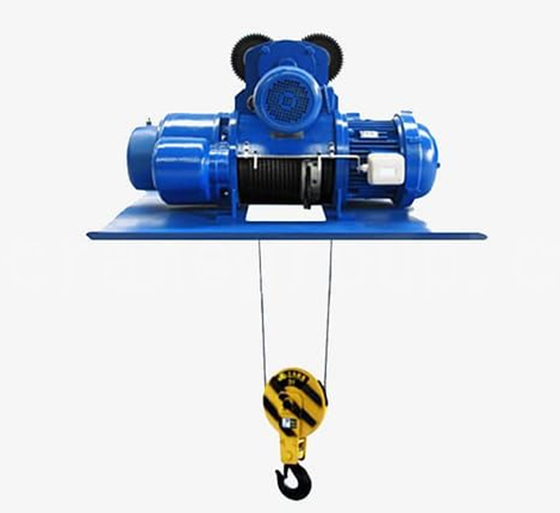

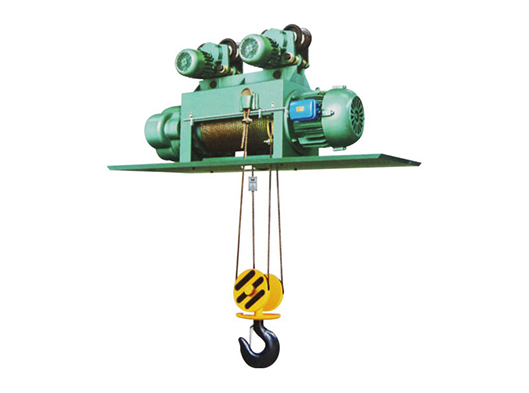

YH Type Metallurgy Electric Hoist
YH series metallurgy electric hoist is a high safety lifting equipment designed for lifting molten metal working conditions, widely used in metallurgical industry. It is equipped with multiple safety protection functions such as double braking system, double limit protection and heat insulation plate. These functions ensure stable operation in high temperature and high risk metallurgical environment.
- Lifting Capacity:0.5 to 20 Ton
- Lifting Height:6 to 30 Meter
- Working Class:M6-M7
Product Description:
YH series metallurgy electric hoist is a high-safety lifting equipment designed for lifting molten metal working conditions, widely used in the metallurgical industry. It is equipped with multiple safety protection functions such as a double braking system, double limit protection, and a heat insulation plate. These functions ensure stable operation in high-temperature and high-risk metallurgical environments.
Features:
-
01
Specialized for metallurgy
Specially for lifting high-temperature and heavy materials such as molten metal. Suitable for foundries, furnace workshops, smelters, and other high-temperature, heavy materials lifting places. Meet the operational needs of different environments.
-
02
Dual braking system
With a support brake and a safety brake, when the main brake fails, the safety brake can quickly ensure that the heavy load will not fall at a loss of speed, which greatly improves the safety of the operation.
-
03
High-temperature insulation protection
For the high-temperature environment of the metallurgical industry, the equipment especially adopts high-temperature insulation protection measures to ensure that the hoist can still work normally under high temperatures.
-
04
Remote control
Remote control allows the operator to precisely control the hoist from a safe distance.
Application:
YH metallurgical electric hoists are specially designed for lifting molten metal and are suitable for industrial environments such as foundries, metallurgical workshops, and sand casting workshops. They are typically operated using a wireless remote control. To ensure safety and reliability, they must not be used in areas with explosion hazards, where sulfuric acid or other corrosive gases are present, or in environments where toxic or flammable items are being lifted.
- Foundry: lifting and pouring of steel and iron ladles, as well as handling of sand molds, castings, and other materials.
- Furnace workshop: for the addition of furnace charge, transfer of molten metal, and cleaning of waste materials.
- Smelting plant: conveying raw materials such as ore and coke, and lifting finished products such as steel ingots and aluminum ingots.

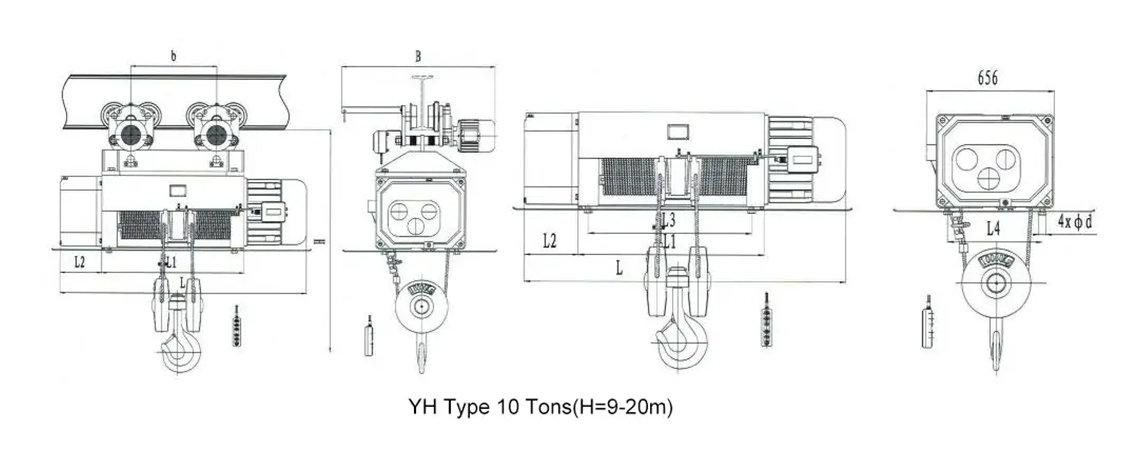

Parameter:
| Capacity(t) | 10 | ||||
| Type | YH | ||||
| Hoisting height(m) | 9 | 15 | 21 | 27 | |
| Hoisting speed(m/min) | 7,0.7-7,7/1.75 | ||||
| Travel speed(m/min) | 20 | ||||
| Wire rope | Dia(mm) | 15 | |||
| Specification | 6x37+IWR | ||||
| Track | 32b-45a | ||||
| Hoisting motor | power(kw) | 13 | |||
| Rotation speed(r/min) | 1400 | ||||
| Current(A) | 30 | ||||
| Travel motor | power(KW) | 0.8x2 | |||
| Rotation speed(r/min) | 1400 | ||||
| Current(A) | 2.4 | ||||
| Power source | 3-phase A.C.380v 50hz | ||||
Note: Customized design according to your specific requirements.
