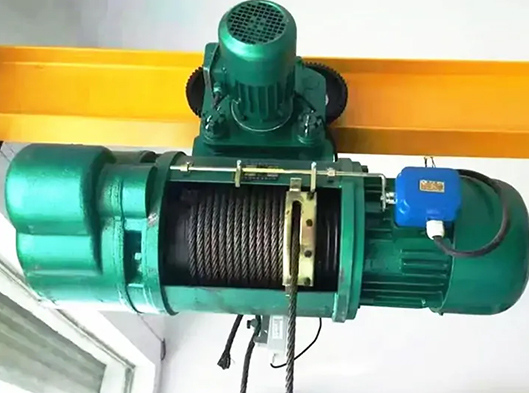

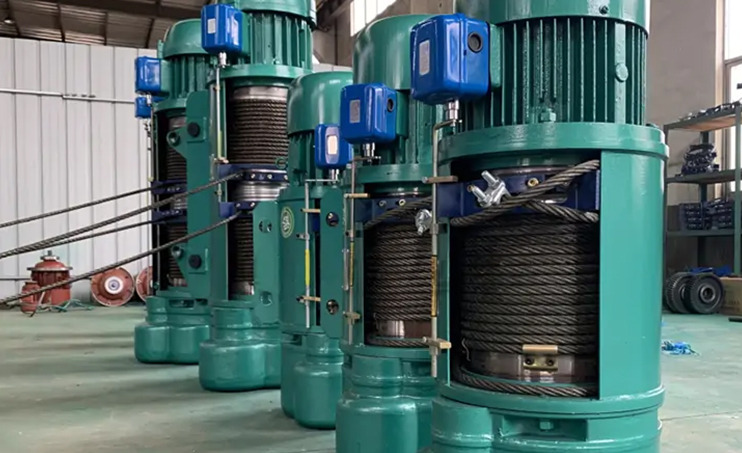

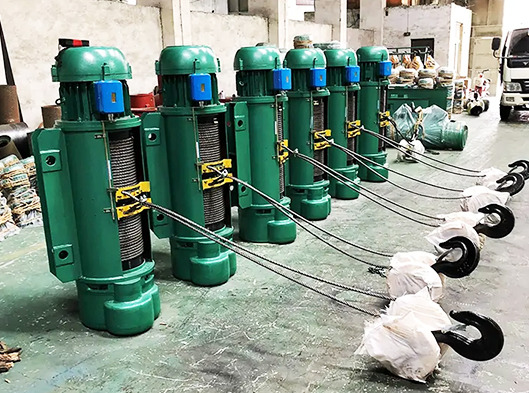

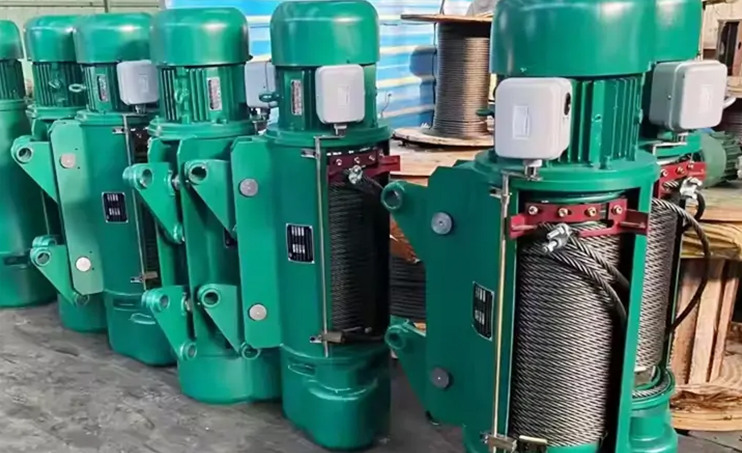

CD1 MD1 Electric Wire Rope Hoist

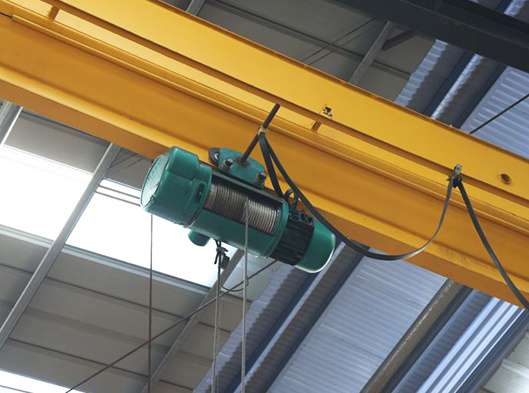

Model CD MD Wire Rope Electric Hoist is a small-sized lifting equipment. Normally we put it on single beam bridge crane, gantry crane and jib cranes.
- Lifting Capacity:2T to 32T
- Lifting Height:6M to 32M
- Working Class:M3, M4
Product Description:
Model CD MD Wire Rope Electric Hoist is a small-sized lifting equipment. Normally, we put it on single-beam bridge cranes, gantry cranes, and jib cranes. With slight modification, it can also be used as an electric winch machine. It has a wide range of applications, like in factories, mines, harbors, warehouses, cargo storage areas, and shops, essential in improving working efficiency and working conditions.

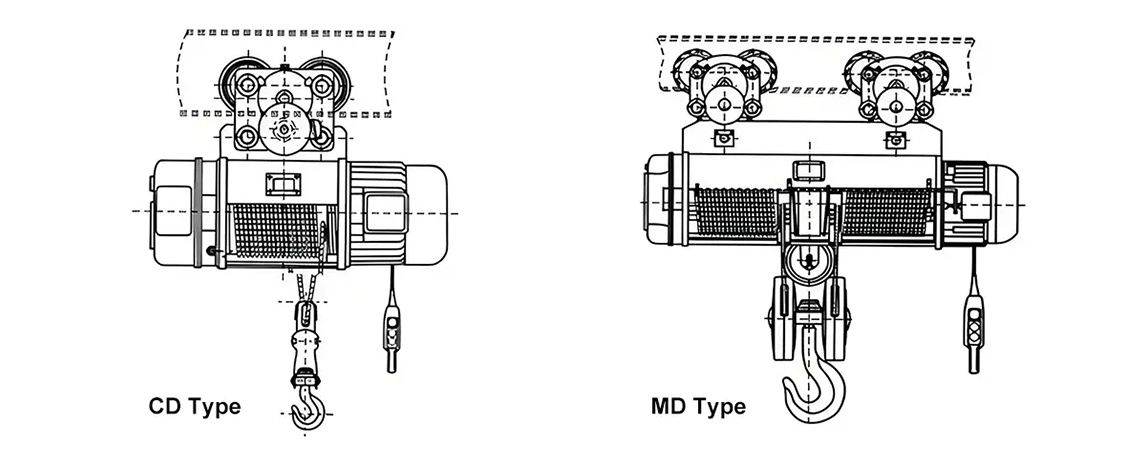

Model CD Electric Hoist has only one normal speed, which can satisfy normal applications. Model MD Electric Hoist provides two speeds, normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc..
To meet the needs of lifting heavier cargo, our factory also manufactures HC16t, HC20t, HC32t, SHC40t, SHC50t, and SHC63t electric hoists. We have a professional engineering team to provide clients with customized service. By having specified requirements, you could get a tailored design solution for your lifting problems.

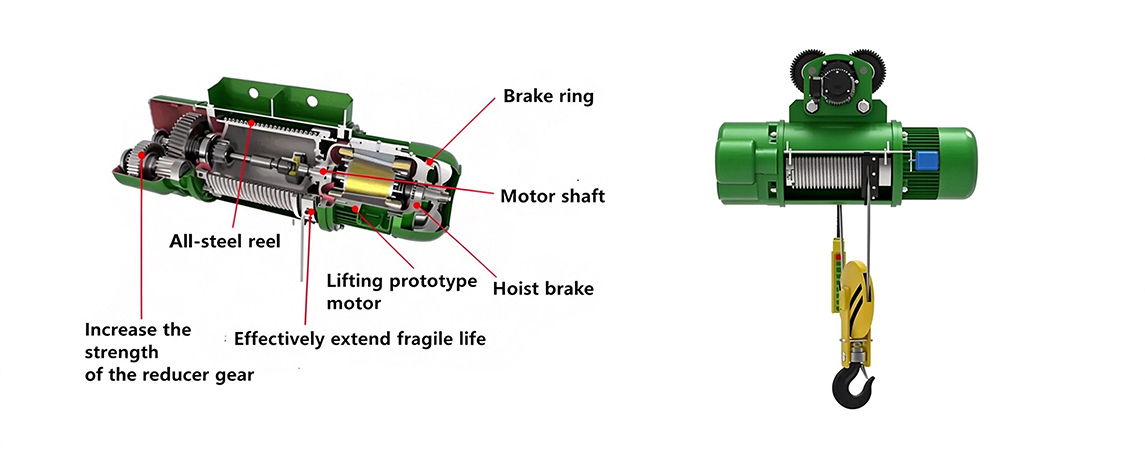

Features:
-
01
Performance
Fast and stable lifting, speed up to 8m/min, can efficiently complete the routine lifting operations.
-
02
Reliable braking to ensure lifting safety, reasonable structural design, stable performance.
-
03
Simple operation, easy to start, reduce training cost and operation difficulty.
-
04
Structure
The use of high-strength steel, durable and corrosion-resistant, to extend the service life.
-
05
Compact design, small footprint, easy to install and use, especially suitable for places with limited space.
-
06
Precise gear transmission, smooth operation, reduce vibration and noise.
Application:
A variety of installation methods are available, such as suspended, fixed, etc., adapting to different I-beam rails and cranes.
Stable operation in indoor and outdoor environments, strong adaptability.
Parameter:
| CD1 Type Electric Hoist Specifications | ||||||||
| Model | Lifting Weight | Lifting Speed | Running Speed | Hoisting Motor | Running Motor | Weight | ||
| t | m/min | m/min | Model | Power kW | Model | Power kW | kg | |
| CD 1T-12M | 1 | 8 | 20 | ZD22-4 | 1.5 | ZDY11-4 | 0.2 | 172 |
| CD 3T-12M | 3 | 8 | 20 | ZD41-4 | 7.5 | ZDY12-4 | 0.8 | 597 |
| CD 5T-12M | 5 | 8 | 20 | ZD41-4 | 7.5 | ZDY21-4 | 0.8 | 597 |
| CD 10T-12M | 10 | 7 | 20 | ZD51-4 | 13 | ZDY21-4 | 0.8 | 1100 |
| CD12T-12M | 12 | 3.5 | 18 | ZD51-4 | 13 | ZDY21-4 | 0.8 | 1200 |
| CD 16T-12M | 16 | 3.5 | 18 | ZD51-4 | 13 | ZDY21-4 | 0.8 | 1200 |
| CD 20T-12M | 20 | 4.2 | 14 | ZD52-4 | 18.5 | ZDY21-4 | 0.8 | 1930 |
| CD 32T-12M | 32 | 3 | 16 | ZDx62-6 | 18.5 | ZDY22-4 | 1.5 | 2950 |
Note: Lifting height can be customized.
| MD1 Type Electric Hoist Specifications | ||||||||
| Model | Lifting Height | Lifting Speed | Running Speed | Hoisting Motor | Running Motor | Weight | ||
| t | m/min | m/min | Model | Power kW | Model | Power kW | kg | |
| MD 1T-12M | 1 | 8/0.8 | 20 | ZDS22-4 | 1.5/0.2 | ZDY11-4 | 0.2 | 199 |
| MD 3T-12M | 3 | 8/0.8 | 20 | ZDS41-4 | 7.5/0.8 | ZDY12-4 | 0.8 | 654 |
| MD 5T-12M | 5 | 8/0.8 | 20 | ZDS41-4 | 7.5/0.8 | ZDY21-4 | 0.8 | 654 |
| MD 10T-12M | 10 | 7/0.7 | 20 | ZDS51-4 | 13/1.5 | ZDY21-4 | 0.8 | 1150 |
| MD 12T-12M | 12 | 3.5/0.35 | 18 | ZDS51-4 | 13/1.5 | ZDY21-4 | 0.8 | 1280 |
| MD 16T-12M | 16 | 3.5/0.35 | 18 | ZDS51-4 | 13/1.5 | ZDY21-4 | 0.8 | 1280 |
| MD 20T-12M | 20 | 4.2/0.42 | 14 | ZDS52-4 | 18.5/2.2 | ZDY21-4 | 0.8 | 1450 |
| MD 32T-12M | 32 | 3/0.3 | 16 | ZDx62-6 | 18.5/2.2 | ZDY22-4 | 1.5 | 2950 |
Note: Lifting height can be customized.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
