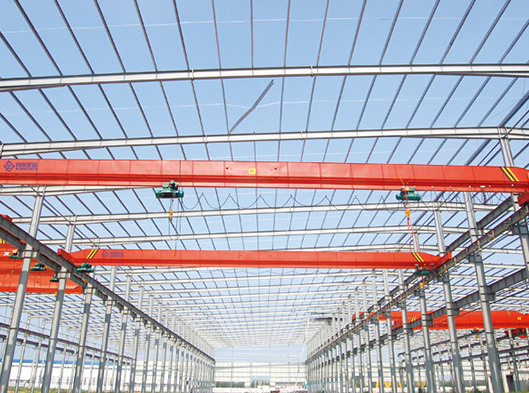

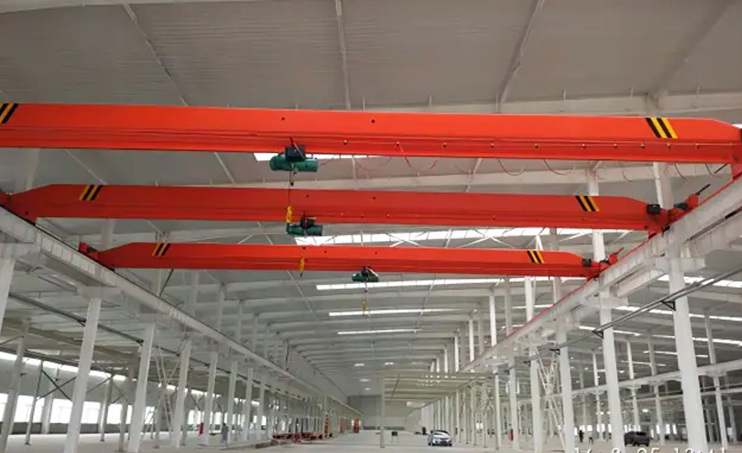

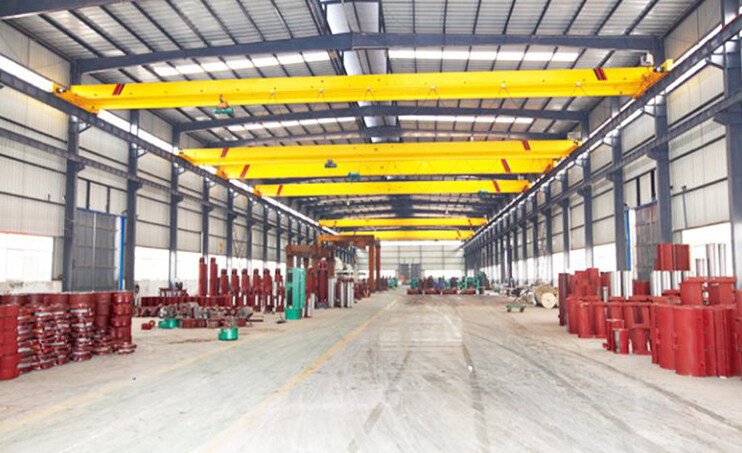

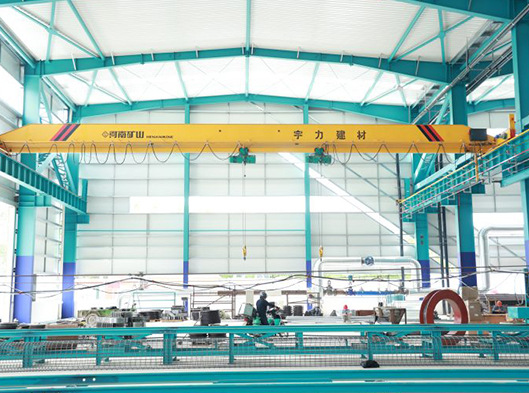

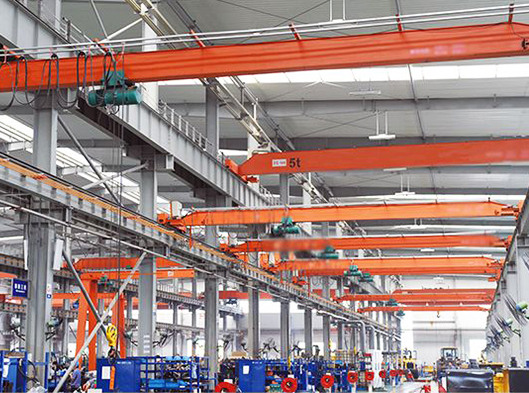

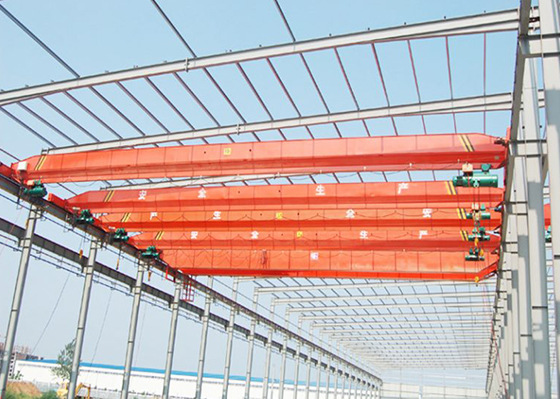

Single Girder EOT Crane
The single girder eot crane is a practical industrial handling equipment with a simple structure. It uses a single main beam structure with end beams and electric hoists to achieve flexible handling of heavy objects. It is widely used in small and medium-sized industrial sites to handle medium and light materials.
- Lifting Capacity(ton):1~32 ton
- Lifting Speed(m/min):5 m/min
- Span:7.5-28.5 meter
Products Description:
Single Girder eot crane is high efficiency equipment for industrial material handling, renowned for their simple structure and practical performance. They utilize a single main girder structure with end beams and a hoist trolley to enable vertical lifting and horizontal transfer of heavy loads. Single Girder EOT cranes are widely used in small and medium-sized warehouses, workshops, assembly lines, and other locations, providing reliable support for light to medium-load material handling.

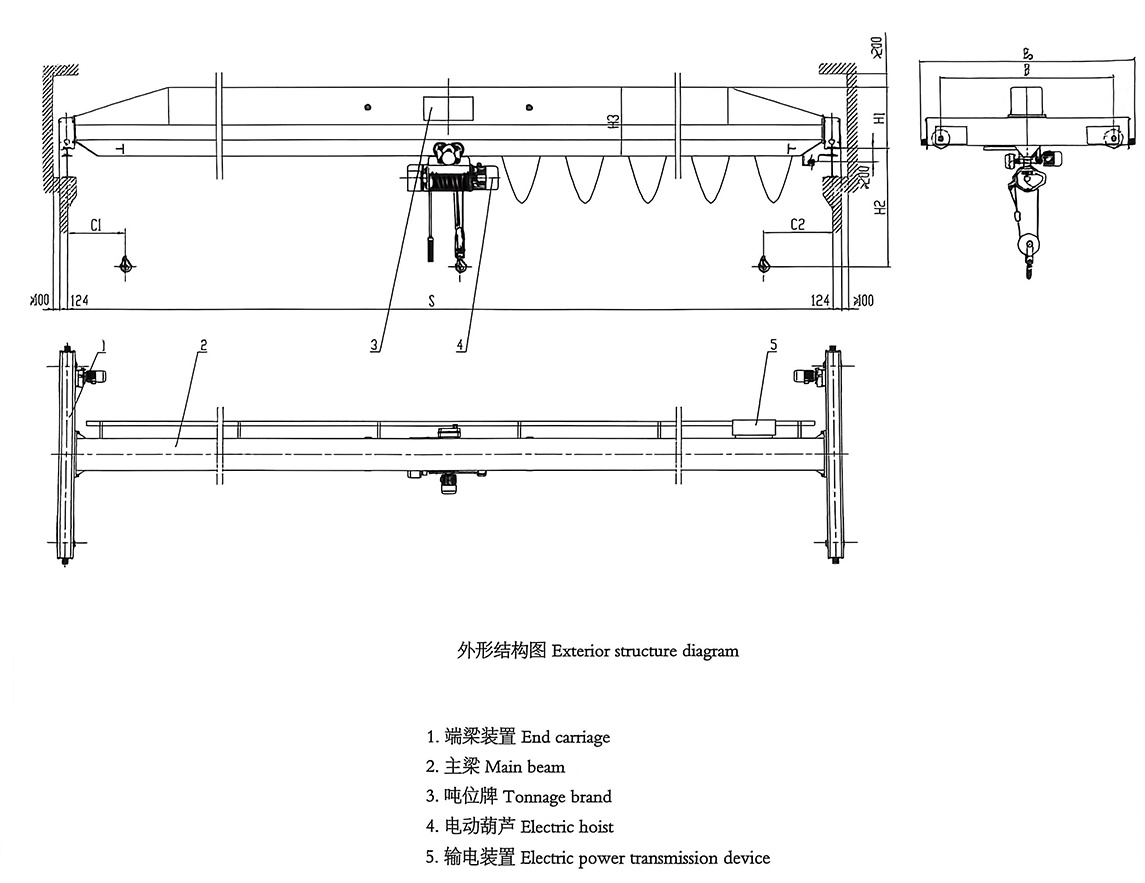

EOT Crane Parts:
-
01
Main Girder
A single box-type or beam-type main girder serves as the core load-bearing structure. Compared to double-girder eot cranes, this crane prioritizes lightweight construction and is suitable for shorter span operations.
-
02
End Beams
Traveling devices at each end of the main girder support the crane along the track, ensuring smooth movement.
-
03
Hoist and Trolley
The electric hoist uses steel ropes to raise and lower loads, while the trolley drives the hoist along the main girder, enabling precise vertical and horizontal handling.
Advantages:
-
Cost-Effectiveness:
Compared to double-girder cranes, this crane boasts a simpler structure, lower manufacturing and installation costs, making it suitable for businesses with limited budgets.
-
Space Compatibility:
Its compact design saves space and is particularly suitable for small and medium-sized workshops or environments with height restrictions.
-
Flexible Operation:
The coordinated operation of the hoist and trolley allows for rapid lifting, transfer, and positioning of materials, improving operational efficiency of the EOT crane.
Application:
- Light Industrial Workshops: Suitable for handling lightweight cargo such as parts and finished product boxes in industries such as electronics and food processing.
- Warehouse Logistics: Stacking and loading and unloading goods within the warehouse, combined with racking systems to improve storage utilization.
- Assembly Line: Provides material supply to the assembly line and assists in component handling during product assembly.
- Maintenance Shop: Used for lifting components during equipment overhaul, facilitating maintenance work.
Parameter:
| Lifting capacity | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 20 ton | 32 ton |
| Span | 7.5-31.5 m | ||||||
| Lifting height | 6m, 9m, 12 m | ||||||
| Lifting speed | 8(8/0.8) m/min | 7(7/0.7) m/min | 3.5(0.35/3.5) m/min | 3.3(0.33/3.3) m/min | |||
| Hoist traveling speed | 20 m/min | ||||||
| Crane traveling speed | 20(30) m/min | ||||||
| Working class | A3, A4, A5 | ||||||
| Power | Three phrase; 380V, 50Hz | ||||||
| Note: Can be customized design according to your needs. | |||||||
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
