Underslung EOT Crane

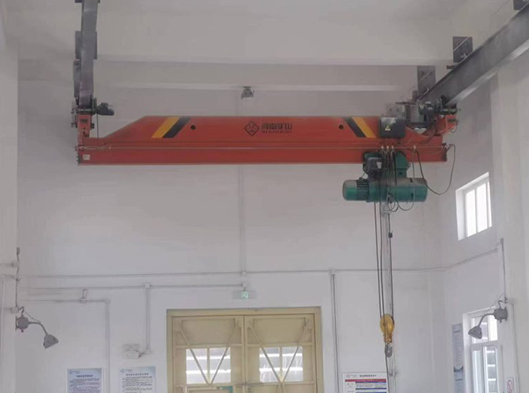

The Underslung EOT Crane, also known as an underhung bridge crane, is a specialized lifting device meticulously engineered for spaces with height constraints. Unlike traditional cranes that rely on ground - supported columns, it suspends from roof trusses or ceiling structures. This unique design makes it a perfect fit for low - headroom buildings, enabling efficient material handling, assembly, and maintenance tasks across various industrial settings.
- Lifting Capacity(ton):1~25 ton
- Lifting Speed(m/min):5 m/min
- Span:4.5-28.5 meter
Equipment Introduction:
The Underslung EOT Crane, also known as an underhung bridge crane, is a specialized lifting device meticulously engineered for spaces with height constraints. Unlike traditional cranes that rely on ground - supported columns, it suspends from roof trusses or ceiling structures. This unique design makes it a perfect fit for low - headroom buildings, enabling efficient material handling, assembly, and maintenance tasks across various industrial settings.

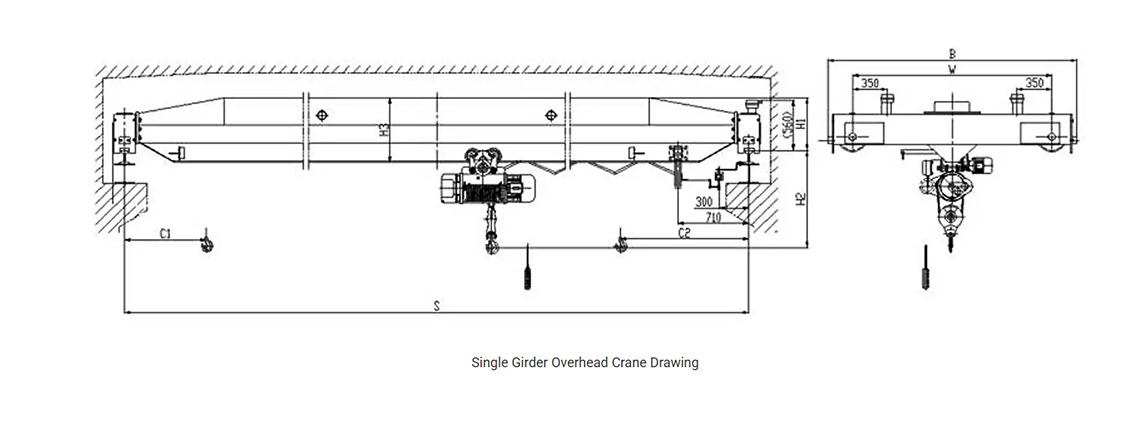

Underslung EOT Crane Design:
-
01
Column-less Design

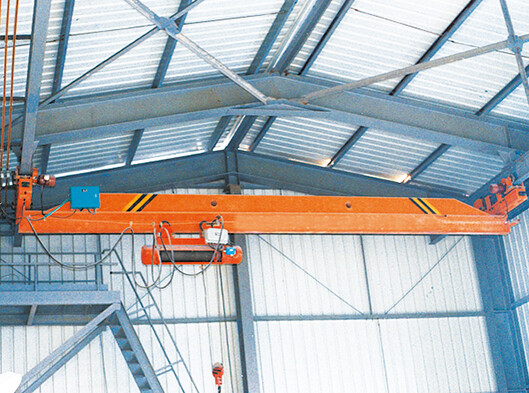

The main beam is suspended directly from the roof structure, eliminating the need for ground support columns. This makes it particularly suitable for workshops and warehouses with complex layouts or limited space.
-
02
Low Headroom Compatibility
The compact design maximizes hook height utilization, allowing installation in low ceilings where traditional cranes are impassable.
-
03
Compatible with Various Building Structures
It can be directly fixed to reinforced concrete roofs, steel trusses, or mounted via a suspension rod, adapting to complex building forms such as flat and pitched roofs.
-
04
Modular Design
Standardized components facilitate installation and allow for rapid expansion and disassembly, making it suitable for both existing factory renovations and new construction projects.
-
05
Efficient Operation and Safety
The crane supports multiple control methods: wireless remote control and push-button operation. It has adjustable lifting and operating speeds. This enables precise control and better handling efficiency. Standard features include overload protection, limit switches, and an emergency stop. An optional anti-collision system is available. These ensure comprehensive operational safety.
-
06
Durability and Low Maintenance Costs
High strength and rigidity come from welded box beams or rolled I-beams. The closed track design reduces dust buildup and component wear. Key components use high-quality materials, with working grades A3-A4. This ensures durability and keeps maintenance costs low.
Customization considerations:
As a professional underslung EOT crane manufacturer, we offer comprehensive customization services, enabling us to precisely tailor our services to your specific needs. We can customize the core performance parameters of the Underslung EOT Crane, such as load capacity, span, and lifting height, as well as control options such as wireless remote control and manual operation. For specialized environments such as chemical plants and coastal areas, we offer explosion-proof and corrosion-resistant solutions. Furthermore, we offer flexible adjustments to track types and mounting methods to ensure a perfect match for your site conditions.
Parameter:
| Lifting capacity | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 20 ton | 32 ton |
| Span | 7.5-31.5 m | ||||||
| Lifting height | 6m, 9m, 12 m | ||||||
| Lifting speed | 8(8/0.8) m/min | 7(7/0.7) m/min | 3.5(0.35/3.5) m/min | 3.3(0.33/3.3) m/min | |||
| Hoist traveling speed | 20 m/min | ||||||
| Crane traveling speed | 20(30) m/min | ||||||
| Working class | A3, A4, A5 | ||||||
| Power | Three phrase; 380V, 50Hz | ||||||
Note: Can be customized design according to your needs.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
