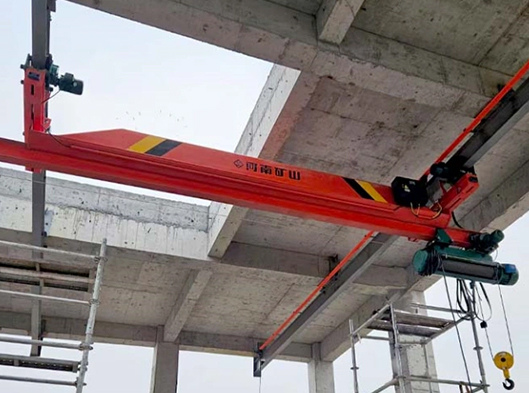

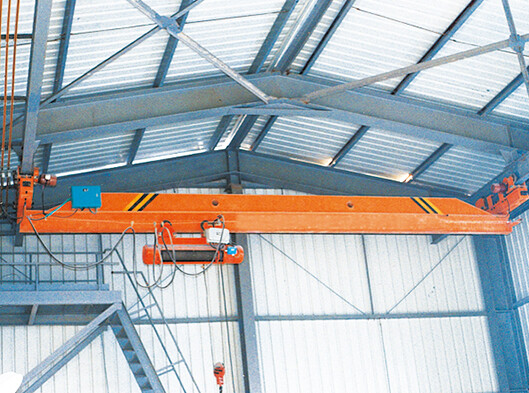

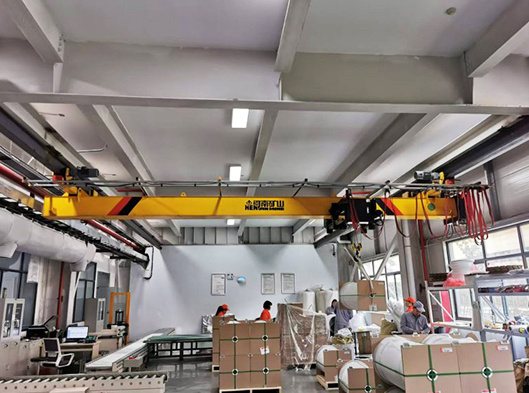

LX Type Electric Suspension Crane
Single girder suspension crane type is mainly using in the location where is no possible install columns to support the overhead crane. It is suitable for limited workshop space.
- Lifting Capacity:1-10 ton
- Lifting Height:5-13 meter
- Span(m):3~22.5
Product Description:
The LX type single beam suspension crane is a light duty lifting overhead crane equipment.
This type of crane is mainly using in the location where no columns could support the overhead crane. The end beams of the suspension bridge crane ride on the bottom flange of runway beam. Typically, suspension bridge crane suspends one the roof of the building and is available only on lighter capacities, no more than 10 tons.
It is good for working environment within working temperature between -25℃—40℃. It is not suitable in locations, where are stocks of flammable, explosive and corrosive materials.
This overhead bridge crane model matches technical standard JB/T2603-94. This high standard design ensures smooth performance and longer service hours.
Features:
-
01
Light and simple structure
One single main beam design, light lifting duty and easy control.
-
02
Easy to install in different working sites
Suitable for small and limit space building.
-
03
Quite cost-effective
Cheaper cost, saving budget and improving profits.
Parameter:
| Lifting capacity | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 20 ton | 32 ton |
| Span | 7.5-31.5 m | ||||||
| Lifting height | 6m, 9m, 12 m | ||||||
| Lifting speed | 8(8/0.8) m/min | 7(7/0.7) m/min | 3.5(0.35/3.5) m/min | 3.3(0.33/3.3) m/min | |||
| Hoist traveling speed | 20 m/min | ||||||
| Crane traveling speed | 20(30) m/min | ||||||
| Working class | A3, A4, A5 | ||||||
| Power | Three phrase; 380V, 50Hz | ||||||
Note: Can be customized design according to your needs.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
