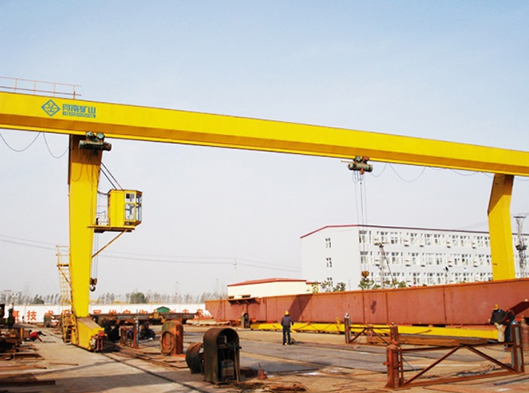

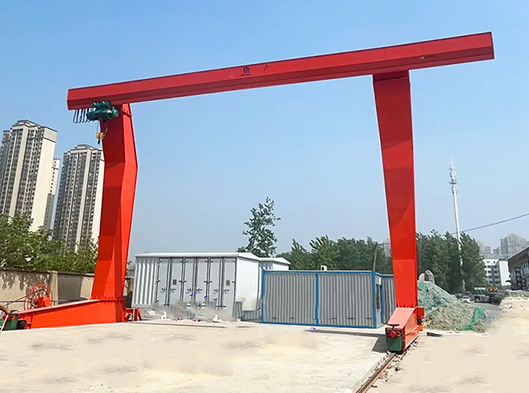

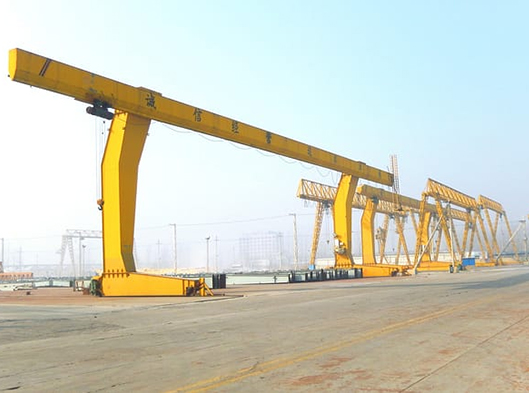

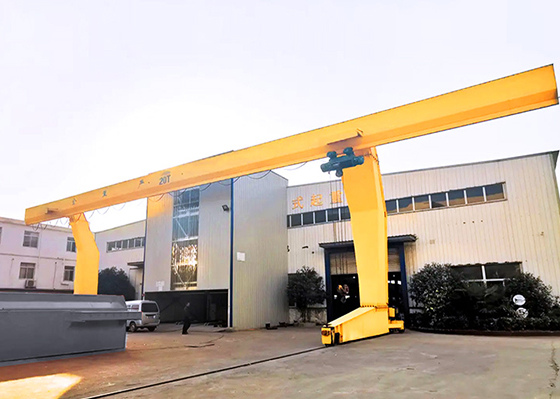

Single Beam L Type Gantry Crane
L type gantry crane is a flexible and efficient single girder gantry crane for outdoor lifting of materials. The main beam, outriggers and lifting mechanism are its core structure.
- Lifting Capacity:5-10 ton
- Lifting Height:6-9 meter
- Span:16—30 meters
Product Description:
The L type gantry crane is a flexible and efficient single girder gantry crane for outdoor lifting of materials. The main beam, outriggers, and lifting mechanism are its core structure. The electric hoist is installed on the main beam as the lifting mechanism. And the lifting and lowering operation of the goods is realized by motor drive. The electric hoist has the characteristics of compact structure and easy operation. This type of gantry crane is a light duty gantry crane running on rails, and the applicable lifting capacity is 5-10 tons. It has unique applications in loading, unloading, or grabbing materials in open spaces and warehouses.
Advantages:
-
01
L-shaped single-girder design
Compared to traditional gantry cranes, L-shaped gantry cranes feature a single-girder offset track and L-shaped leg structure, offering greater lifting space and span capacity, making it easier to transport items from the center of the span to under the boom.
-
02
Box-type gantry frame
Sturdy structure suitable for heavy-duty operations, with lifting capacities ranging from 5 tons to 50 tons.
-
03
Functional Configuration
Can be equipped with an enclosed cab, remote control, or control panel, and optional auxiliary equipment such as air conditioning, electric fans, fire extinguishers, and walkie-talkies to enhance operational comfort and safety.
-
04
Versatile load-handling capability
Suitable for handling goods of various weights, with a maximum lifting height of 12 meters and a span of up to 35 meters.
-
05
Flexible mobility
Can be equipped with either track-mounted or wheeled mobility systems, suitable for various working environments such as factories, warehouses, and construction sites.
-
06
Multiple safety protection devices
Equipped with limit switches, emergency stop buttons, overload protection, and other safety devices to ensure operational safety.
Applications:
L type gantry crane has various application fields.
- Port loading and unloading: Suitable for handling containers, bulk cargo, scrap steel, and other goods.
- Workshop and warehousing: Used for hoisting and transporting heavy machinery, steel, and other materials.
- Construction and logistics: Suitable for large component installation and logistics turnover operations.

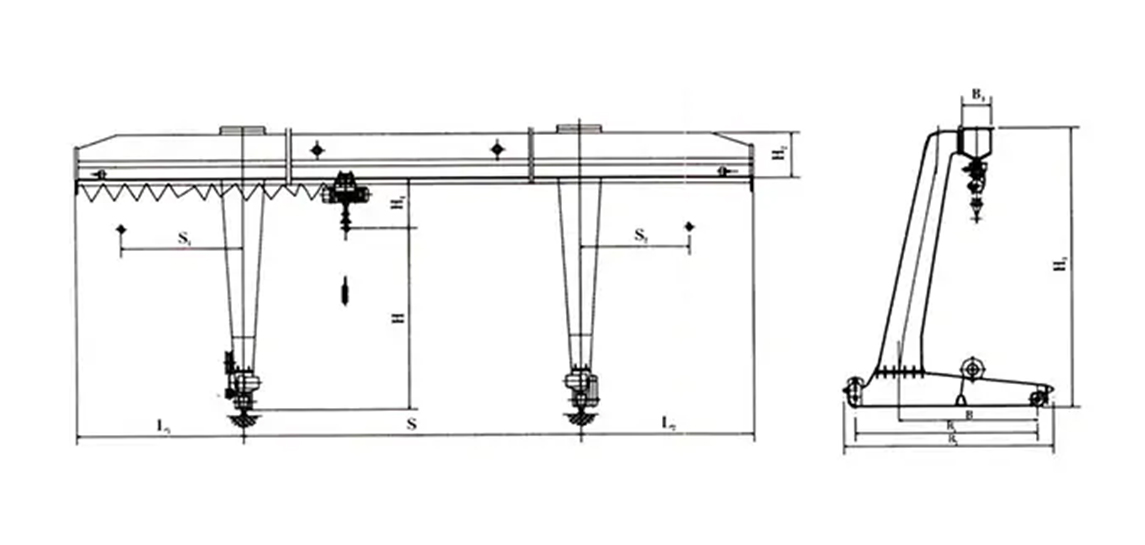

Parameter:
| L Type | Specifications |
| Lifting Capacity | 5 / 10 / 16 / 20 / 32 t |
| Span | 10 – 35 m |
| Outdoor Leg Height | 4 – 24 m |
| Indoor Beam Height | Customized to building structure |
| Bridge Travel Speed | 20 – 32 m/min |
| Duty Class | A3 – A5 |
| Standards | GB/T 14406, FEM, CE |
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
