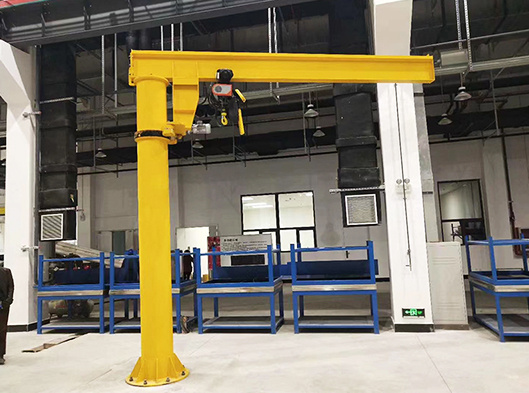

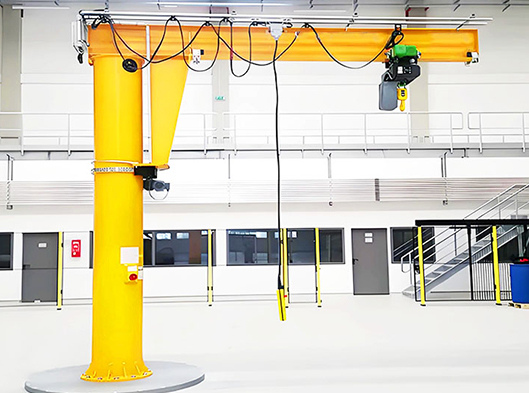

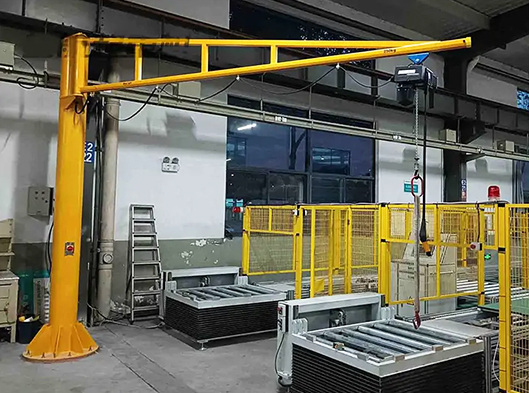

Floor Mounted Slewing jib Crane
Floor Mounted Slewing jib crane takes wire rope electric hoist as the lifting mechanism. It features with a lot of advantages, durability, safety, reliability, wide application, easy installation and so on.
- Capacity(t):0.5-10 ton
- Lifting Height(m):2-6 meter
- Working Grade:A3
Product Description:
Floor Mounted Slewing jib crane takes wire rope electric hoist as the lifting mechanism. It features with a lot of advantages, durability, safety, reliability, wide application, easy installation and so on. And we also call it as column jib crane. This jib crane type is suitable for workshops, warehouses, wharves and power stations and other places of lifting and handling of objects.
Features:
-
01
Stable performance
with good design of column structure.
-
02
Rugged and durable
using high standard materials as body.
-
03
Safe and reliable
taking safety control system and components to ensure safety.
-
04
Easy to install
advanced simple design and labor saving.
-
05
Wide range of applications
suitable to many workshops and warehouses.
Parameter:
| Lift capacity(T) | 1, 2, 3, 5, 10, 16, 20 | |||
| Span(M) | 7.5-22.5 | |||
| Mechanism traveling | Speed(m/min) | 10, 20, 30 | 45, 60 | |
| Motor | Type | ZDY1 21-4 | ZDR12-4 | |
| Power(kw) | 2*0.8 | 2*1.5 | ||
| Speed(r/min) | 1380 | 1380 | ||
| Electric chain hoist or wire rope hoist | Model | CD1/MD1/HHBB | ||
| Lift height(m) | 3-25 M | |||
| Traversing speed(m/min) | 380V/50Hz or on request | |||
| Lifting speed(m/min) | 8(7); 8/0.8(7/0.7) | |||
| Working Grade | A3-A5 | |||
| Power Supply | 380V/50HZ or on request | |||
Note: The above parameters can be customized according to specific needs.
