Self Propelled Scissor Lift Platform
The self-propelled scissor lift high-altitude work platform is primarily used to lift workers to elevated positions for maintenance, inspection, cleaning, or installation tasks.
- Kind tips:All of the above parameters are customizable.
Product Description:
The Self-Propelled Scissor Lift Platform is a versatile lifting device that combines self-propelled mobility with lifting functionality. It is primarily designed for high-altitude work and is suitable for indoor environments such as factories, warehouses, and areas with narrow passageways. Equipped with an advanced electric drive system, it offers features such as maneuverability, ease of operation, low noise levels, and zero emissions.
The Self-Propelled Scissor Lift is fitted with an intelligent control system, making operation simple and intuitive—a single operator can easily perform lifting and movement tasks. Its compact structural design combined with flexible steering performance, allows it to maneuver freely in confined spaces, significantly enhancing high-altitude work efficiency. The platform offers stable load-bearing capacity and reliable safety barriers, making it an ideal alternative to traditional scaffolding.
Features:
-
01
Intelligent Maneuverability
Equipped with a fully electric drive system and intelligent steering mechanism, it achieves precise positioning with a zero turning radius, supporting autonomous movement and multi-angle adjustments in confined spaces, ensuring strong operational maneuverability.
-
02
All-Condition Adaptability
Featuring an IP54 protection rating design and adaptive tire configuration, it seamlessly handles complex indoor and outdoor environments such as construction sites, warehouses, and industrial facilities, operating stably in temperatures ranging from -20°C to 50°C.
-
03
Multi-layered safety protection system
Integrated with 12 safety modules including 3D tilt protection (±3° automatic locking), dual-circuit hydraulic safety valves, and explosion-proof mechanical locking devices, it meets the highest safety certification standards of EN280 Class 3.
-
04
Precision hydraulic control technology
Utilizing a load-sensing proportional hydraulic system, it ensures precise positioning and infinitely adjustable lifting speed (6-12 m/min), guaranteeing smooth operation at high altitudes.
Application:
Self-propelled scissor lift platforms are suitable for a variety of high-altitude working sites due to their flexibility and efficiency.
- Construction industry: On construction sites, a hydraulic scissor lift platform can perform high-altitude work tasks such as curtain wall installation, roof repair, and structural frame construction, providing a safe and stable working platform.

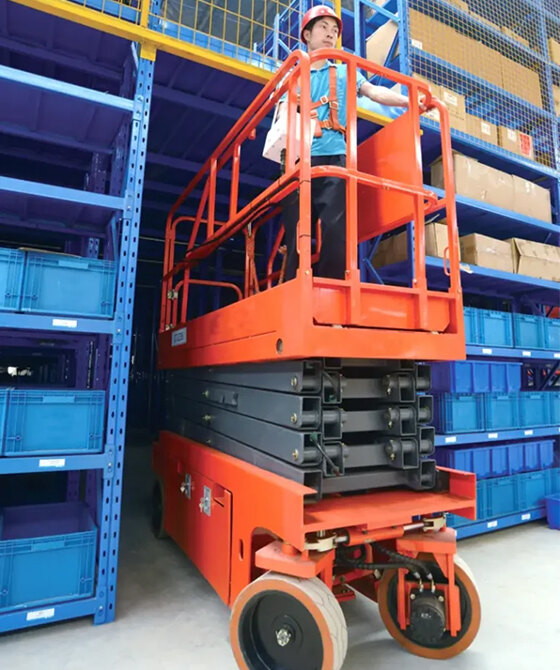

- Logistics warehousing: In logistics centers or large warehouses, it could carry and load, and unload goods to high shelves, to perform inventory counts.

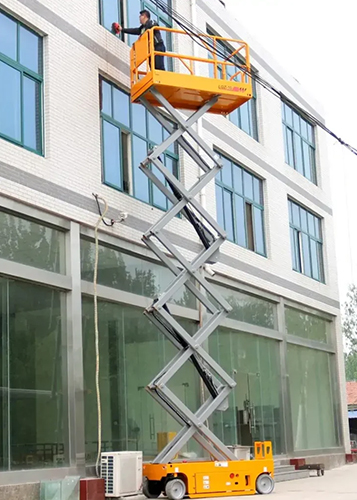

- Cleaning and maintenance: For maintenance work such as exterior wall cleaning, billboard replacement, and glass curtain wall cleaning of high-rise buildings, self-propelled scissor lifts can provide the necessary height support and workspace.
- Equipment installation and commissioning: When installing elevators, air conditioning systems, or other heavy equipment, the electric scissor lift platform can provide technicians with a safe and easy-to-operate environment to complete complex installation and commissioning work.
- Public facility maintenance: For example, in public places such as airports and stations, it is for daily maintenance work such as lamp replacement and ceiling inspection, which enables workers to complete tasks safely without disturbing the public.
Parameter:
| Maximum working height | M | 8 | 10 | 12 | 13.8 | 15.7 |
| Maximum platform height | M | 6 | 8 | 10 | 11.8 | 13.7 |
| Extended table size | M | 0.9 | ||||
| Safe working load | KG | 500 | 450 | 320 | 320 | 227 |
| Extended platform safe working load | KG | 113 | ||||
| Working platform size | M | 2.27×1.12×1.13 | 2.64×1.12×1.13 | |||
| Overall machine dimensions | M | 2.43×1.22×2.28 | 2.43×1.22×2.42 | 2.43×1.22× | 2.43×1.22×2.67 | 2.8×1.39×2.66 |
| 2.54 | ||||||
| Overall machine dimensions (guardrail folded) | M | 2.43×1.22×1.71 | 2.43×1.22×1.84 | 2.43 ×1.22 × | 2.43×1.22×2.09 | 2.8×1.39×2.09 |
| 1.96 | ||||||
| Wheelbase | M | 1.89 | 2.26 | |||
| Hydraulic oil tank capacity | L | 20 | 20 | 20 | 20 | 25 |
| Gradability | 25% | |||||
| Center ground clearance | M | 0.1/0.02m | ||||
| Turning radius (inner wheel/outer wheel) | M | 0.4/2.4 | 0.45/2.9 | |||
| Maximum number of passengers | 3 | 3 | 2 | 2 | 2 | |
| Lifting speed | m/min | 6-9m/min | ||||
| Machine travel speed (folded state) | km/h | 3.5km/h | 2.7km/h | |||
| Machine travel speed (lifted state) | km/h | 0.8km/h | ||||
| Battery | 4*6V/200ah | |||||
| Tyre size | mm | Φ381×127mm | ||||
| Weight (kg) | KG | 2100kg | 2290kg | 2540kg | 2680kg | 3210KG |
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
