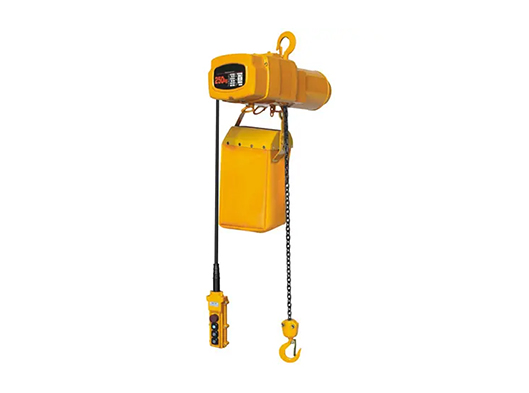

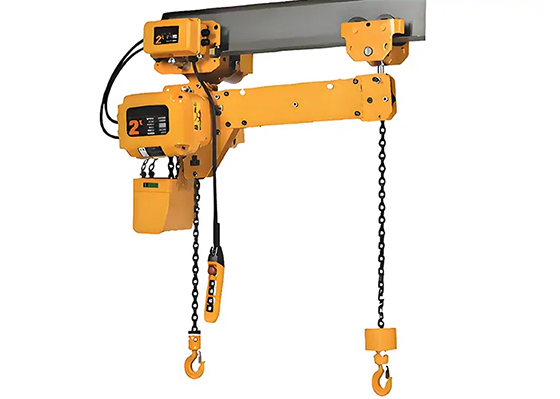

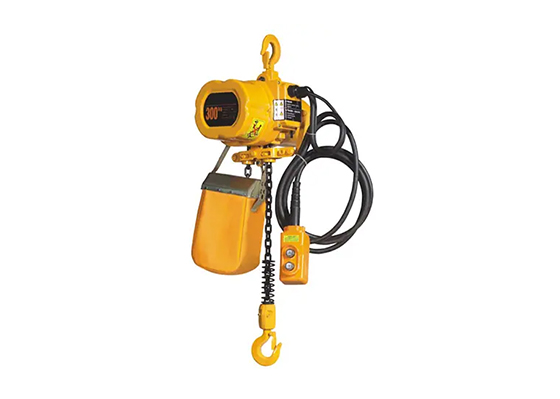

Electric Chain Hoist
The chain electric hoist is a compact, lightweight lifting device with a rated load range of 0.25 to 5 tons, with a single chain configuration usually used below 5 tons. The recommended lifting height is 3 to 12 meters, beyond which chain failure may occur.
- Lifting Capacity:0.25t～5t
- Lifting Height:3m～12m
- Working Level:M3~M5
- Type:Trolley type/fixed type
Product Introduction:
The chain electric hoist is a compact, lightweight lifting device with a rated load range of 0.25 to 5 tons, with a single chain configuration usually used below 5 tons. The recommended lifting height is 3 to 12 meters, beyond which chain failure may occur. This equipment can work with bridge cranes, gantry cranes, and jib cranes to improve material handling efficiency, and it is especially suitable for low buildings or places that require temporary expansion of lifting space, such as temporary factories.
The Henan mine chain electric hoist is manufactured strictly per DIN German industrial standards; the core components, such as the chain, motor, brake, and clutch, are all imported from Germany. The reducer shell adopts an aluminum alloy die-casting process, which has both lightweight and high-strength characteristics. The appearance of the equipment is exquisite, and the internal gears are quenched at high temperatures to enhance wear resistance and impact resistance. Combined with the leading international manufacturing technology, the gear meshing precision is high, and the equipment runs stably and has a long service life.
Features and Advantages:
-
01
Lightweight aluminum alloy shell
Lightweight and sturdy, suitable for harsh environments. Fully sealed design is dustproof and waterproof, good heat dissipation, efficiency up to 40%, stable operation.
-
02
High precision limit switch
Automatic power off when reaching the set height, preventing the chain from exceeding the limit and ensuring safety.
-
03
24V/36V low voltage control
24V/36V low voltage control is adopted to prevent power leakage and ensure the safety of personnel and equipment.
-
04
Magnetic generator brake
Power failure automatic brake, improve load control precision and safety.

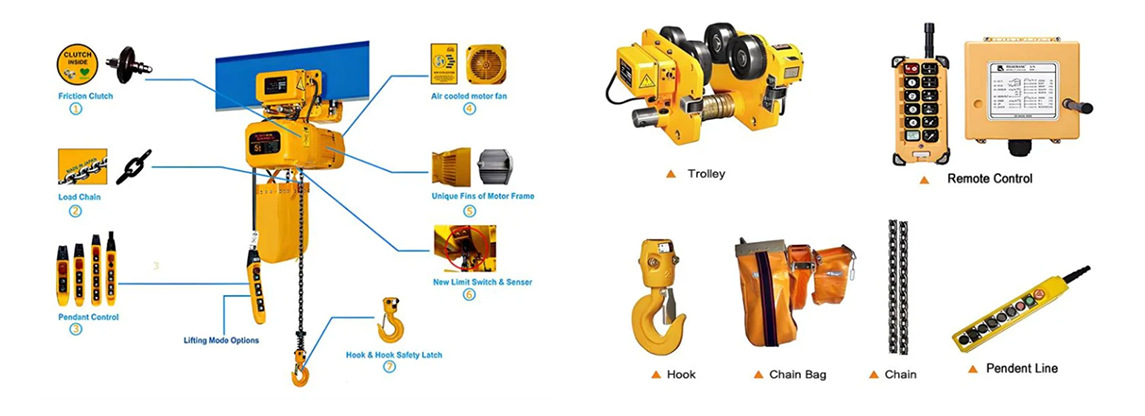

Structure:
A small electric chain hoist is mainly composed of core parts such as a motor, transmission mechanism, and chain wheel. Among them, the chain and brake system are the key parts of the equipment.
-
Chain:
Made of high-strength alloy steel, it is wear-resistant and has a strong load-bearing capacity.
-
Braking system:
It can accurately control the lifting and lowering process to prevent accidental slipping.
-
Transmission mechanism:
compact design, smooth operation, able to efficiently transfer power, suitable for a variety of lifting operation scenarios.
Applications:
Chain electric hoists are lightweight and highly efficient, widely used in manufacturing, logistics, warehousing, construction sites, maintenance, and other fields, especially suitable for limited space or need to move frequently in the operating environment. The specific applications are as follows:
- Direct material lifting in factories, workshops, warehouses, and other places.
- Chain hoists can also be used with overhead cranes, gantry cranes, and jib cranes to meet diversified lifting tasks, such as equipment installation, cargo handling, and production line material transfer.
Parameter:
| Capacity(t) | 5 | 20 | 50 | 80 |
| Lifting Height(m) | ≤24 | ≤30 | ≤26 | ≤20 |
| Lifting Speed(m/min) | 5/0.8 | 4/0.67 | 0.53~3.2 | 0.4~2.4 |
| Travel Speed(m/min) | 2~20 | |||
| Work Duty | M5 | |||
| Power Supply | AC 380V 50Hz | |||
Note: Customized design according to your specific requirements.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
