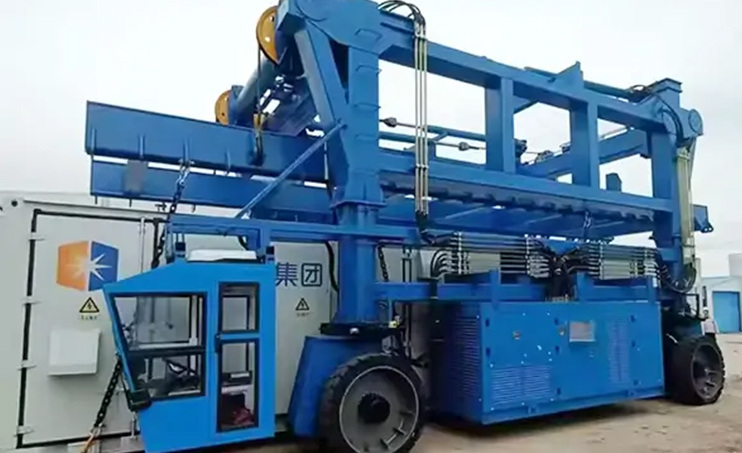

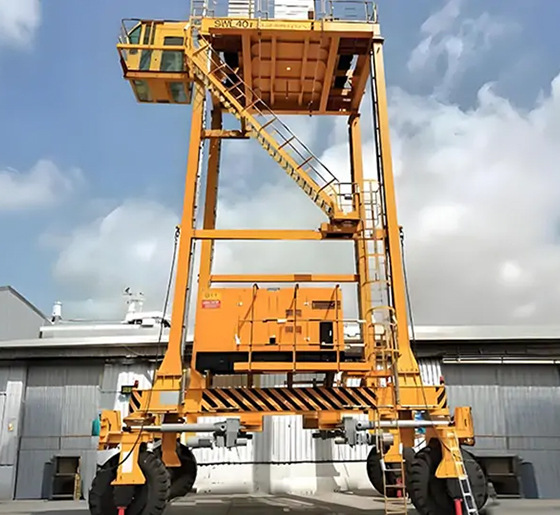

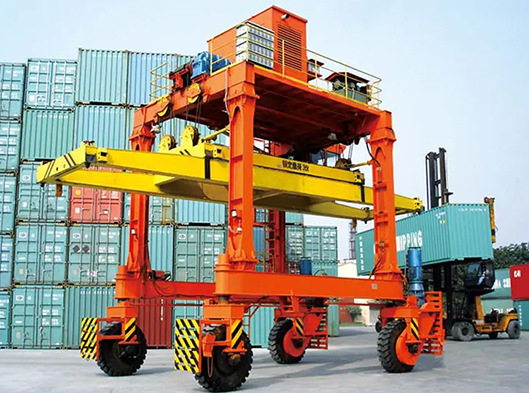

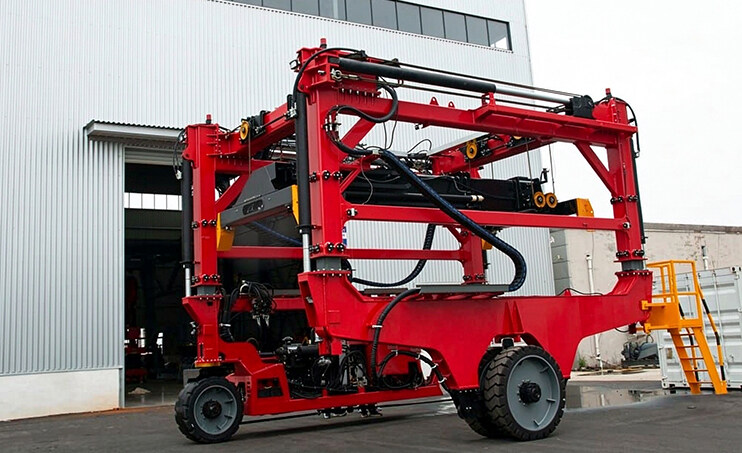

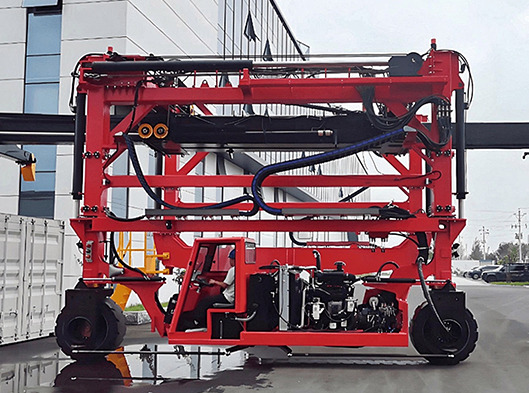

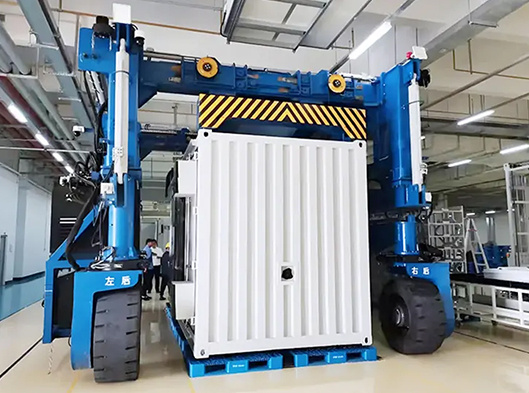

Container Straddle Carrier Crane
We support a fully customized design of a container straddle carrier, providing the best solution based on yard layout, container specifications, lifting capacity, and level of automation.
- Lifting Capacity(ton):20–60 tons
- Lifting Height (Stacking Level):1–3 containers
- Travel Speed(km/h):20–45 km/h
Product Description:
The Container Straddle Carrier Crane is a specialized container handling equipment widely used in ports, container yards, logistics terminals, and intermodal transportation centers. It is designed to lift, stack, and transport standard ISO containers efficiently without the need for fixed rails or additional cranes. Straddling the container and lifting it directly from the ground or trailer platform enables flexible, fast, and space-saving container handling operations.
Features:
-
01
High Flexibility
Capable of independent movement and turning, suitable for narrow container yards and complex traffic layouts.
-
02
Efficient Stacking
Supports stacking of containers from 1–3 layers (or higher upon request), improving land utilization.
-
03
Smooth Handling & Stability
Equipped with hydraulic lifting systems and heavy-duty tires for stable load handling.
-
04
Simple Operation
Designed with ergonomic control systems and optional remote/automated operation.
-
05
Low Infrastructure Cost
No need for rail tracks, gantry beams, or foundation construction.
Applications:
- Seaports and Container Terminals: Handling container loading/unloading, stacking, and transfer to enhance terminal throughput efficiency.
- Inland Dry Ports/Rail Terminals: Facilitating container transshipment between rail and road networks to boost multimodal transport efficiency.
- Logistics Warehouses & Distribution Centers: Handles standard ISO containers and mobile storage units for flexible on-site logistics management.
- Manufacturing & Industrial Storage Yards: Moves heavy-duty cargo like large equipment crates and steel structure packaging, reducing reliance on forklifts and cranes.
- Mining, Energy & Project Cargo Sites: Facilitates modular transport of oversized/overweight equipment modules, improving construction site scheduling capabilities.

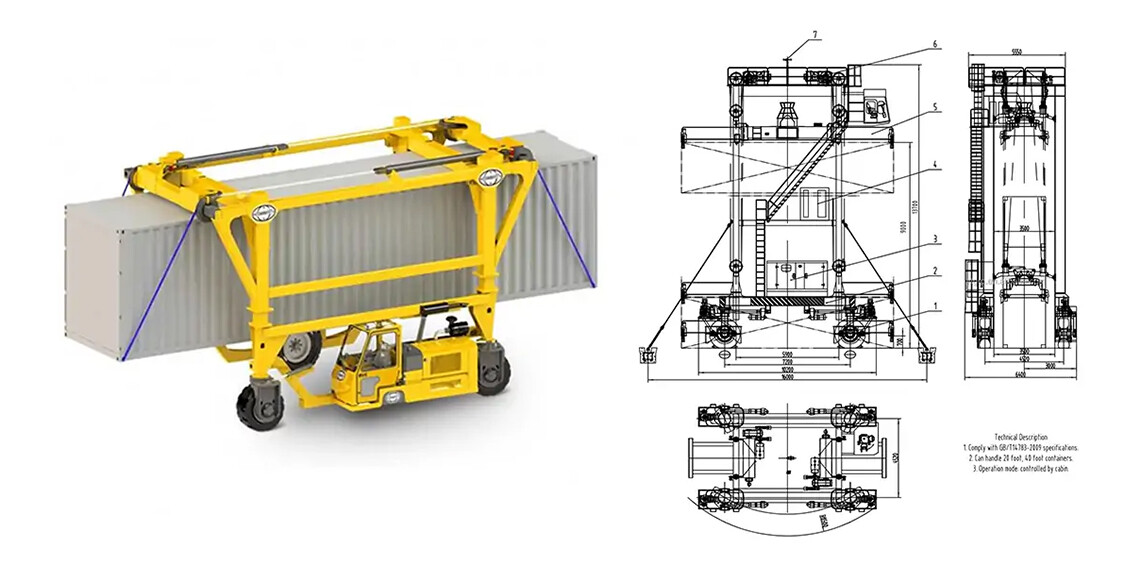

Parameter:
| Main Technical Parameters | ||||
| Rated Lifting Capacity (Ton) | 35 | 41 | 70 | |
| Base Distance (Meter) | 7 | 7 | 7.5 | |
| Span (Meter) | 23.47/26 | 23.47/26 | 23.47/26 | |
| Lifting Height (Meter) | 15.5/18.5 | 15.5/18.5 | 15.5/18.5 | |
| Stack Layers | 4/5 | 4/5 | 4/5 | |
| Container Specification | 20’,40’,45’ | 20’,40’,45’ | 20’,40’,45’ | |
| Speed | Hoisting(full load/empty load) | 20/40 | 25/50 | 25/50 |
| Gantry Traveling(full load/empty load) | 30/130 | 30/130 | 30/130 | |
| Trolley Traveling | 70 | 70 | 70 | |
| Wheel Numbers | 8 | 8月16日 | 16 | |
| Maximum Wheel Load | 300 | 320/180 | 200 | |
| Power Supply | Diesel generator set or three phase AC380V 50Hz | |||
The items listed in the above technical parameter table are for reference.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
