RTG Rubber Tyred Gantry Crane
RTG Rubber Tyred Gantry Crane (RTG Crane) is a flexible and high-performance lifting equipment widely used in container yards, precast beam yards, logistics centers, and wind power projects. It is designed to handle heavy loads such as containers, concrete beams, steel structures, and large components with high precision and efficiency.
- Lifting Capacity(ton):20~45 ton
- Lifting Height(m):15-20m
- Span(m):12~28 m
Product Description:
Equipped with a mobile rubber-tyred structure, the RTG Rubber Tyred Gantry Crane can move freely without rail foundations, making it ideal for outdoor operations and variable work zones. It features advanced control systems, including cab control, wireless remote, or intelligent automation, ensuring stable, safe, and efficient operation.
Nucleon can custom design according to meet your specific lifting requirements, including lifting height, span, control mode, and configuration. Contact our engineering team today to get a tailored Rubber Tyred Gantry Crane solution for your project!
Advantages:
-
01
Mobility
Equipped with wheels, it can move freely in the yard, quickly locate containers, and improve loading and unloading efficiency.
-
02
Handling capacity
Able to handle one or more standard containers at the same time, suitable for high-throughput terminals.
-
03
Versatility
The spreader is adjustable to accommodate different sizes and types of containers.
-
04
Height and reach
Large lifting height, wide coverage, and optimized storage space utilization.
-
05
Power options
Support diesel or electric drive, flexible choice, to adapt to different environmental and cost requirements.
-
06
Control system
Equipped with an advanced automation system, integrated anti-collision technology, and remote monitoring to improve safety and efficiency.
-
07
Weather resistance
Adopts corrosion-resistant materials and rubber tires to adapt to harsh environments, including marine conditions.
-
08
Cab design
Provides a clear vision, equipped with humanized controls and a climate system to enhance operator comfort.
-
09
Safety features
Integrated overload protection, emergency brake, and sound alarm to ensure safe operation.

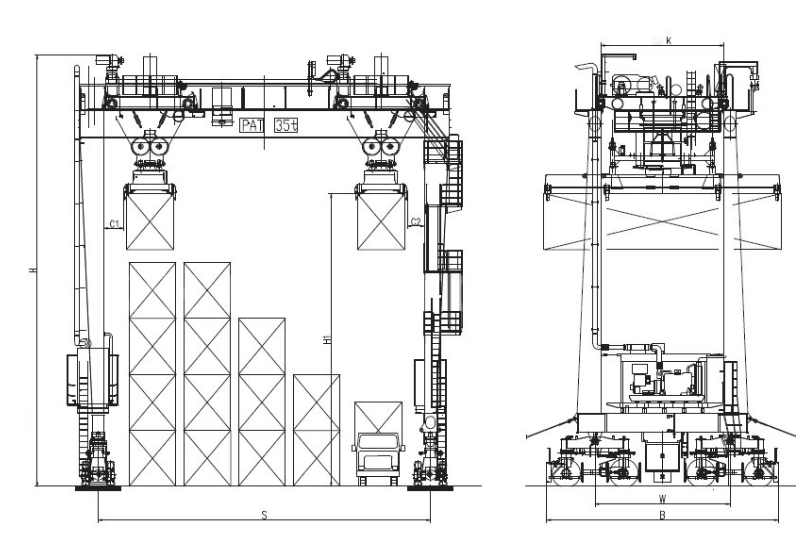

Rubber Tyred Gantry Crane Parts:
Rubber Tyred Gantry Crane structure mainly consists of a steel frame, hoisting mechanism, minimum slewing mechanism, spreader anti-sway mechanism, crane traveling mechanism, steering mechanism, trolley traversing mechanism, container spreader, diesel generator set, electrical equipment and safety appurtenances, and other key components.

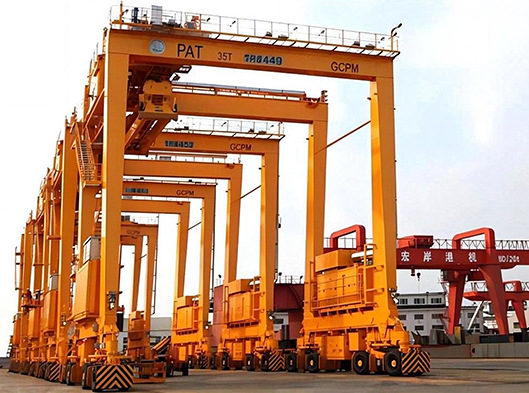

Applications:
The RTG Rubber Tyred Gantry Cranes are mainly used in logistics nodes that require efficient and flexible handling of container storage and transshipment. The following is a description of the application scenarios:
- Ports & harbors (container loading or unloading and stacking).
- Railway freight yards (intermodal transport of containers).
- Container terminals (efficient cargo handling in logistics hubs).
- Inland container depots (storage and sorting of containers).
- Container repair and cleaning yard: Stacking and management of containers waiting to be repaired, under repair, or repaired/cleaned.
- Empty container yard: Specialized for storing and managing a large number of empty containers. RTG's stacking capacity is very suitable for this scenario, which can maximize the use of limited site space.
Parameter:
| Main Technical Parameters | ||||
| Rated Lifting Capacity (Ton) | 35 | 41 | 70 | |
| Base Distance (Meter) | 7 | 7 | 7.5 | |
| Span (Meter) | 23.47/26 | 23.47/26 | 23.47/26 | |
| Lifting Height (Meter) | 15.5/18.5 | 15.5/18.5 | 15.5/18.5 | |
| Stack Layers | 4/5 | 4/5 | 4/5 | |
| Container Specification | 20’,40’,45’ | 20’,40’,45’ | 20’,40’,45’ | |
| Speed | Hoisting(full load/empty load) | 20/40 | 25/50 | 25/50 |
| Gantry Traveling(full load/empty load) | 30/130 | 30/130 | 30/130 | |
| Trolley Traveling | 70 | 70 | 70 | |
| Wheel Numbers | 8 | 8月16日 | 16 | |
| Maximum Wheel Load | 300 | 320/180 | 200 | |
| Power Supply | Diesel generator set or three phase AC380V 50Hz | |||
The items listed in the above technical parameter table are for reference.
