Grab Ship Unloader Crane
The Grab ship unloader crane (AGD grab unloader) is a type of efficient mechanical equipment specifically designed for bulk cargo loading and unloading. Its structural design is complex and sophisticated, aiming to meet the needs of fast, safe, and efficient operation.
- Rated production capacity:1250 ton/h
- Hoisting speed:110-150 m/min
- Luffing angle of boom:0-80 degree
- Span:22 Meters
Product Introduction:
The Grab ship unloader crane (AGD grab unloader) is a type of efficient mechanical equipment specifically designed for bulk cargo loading and unloading. Its structural design is complex and sophisticated, aiming to meet the needs of fast, safe, and efficient operation.
First, the arm system is one of the core parts of the grab type gantry ship unloader, responsible for providing a sufficient working range. The arm is typically made of high-strength steel, providing good rigidity and stability to prevent deformation or shaking during large-scale movements. The arm connects to the fuselage through a hinge, and can be hydraulically or electrically driven to achieve variable amplitude.

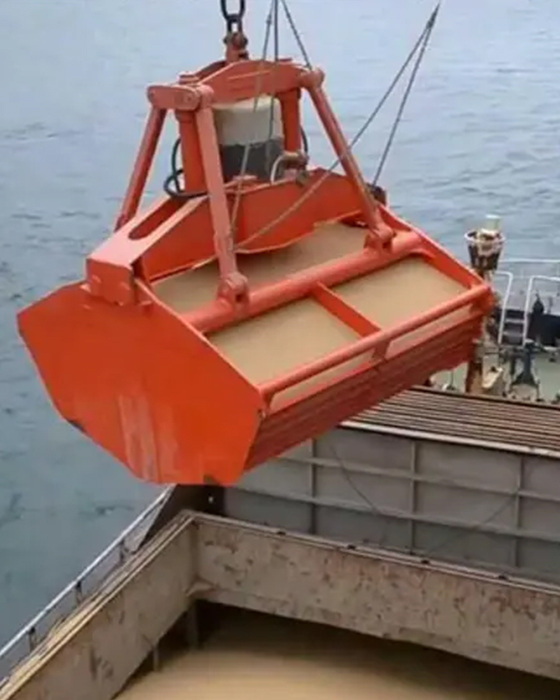

Secondly, the grab device is the part that directly contacts the cargo. According to different cargo types (such as coal, ore, grain, etc.), different types of grabs can be selected, such as Double Flap Clamshell Grab Buckets or multi-petal grabs. The design of the grab should not only consider its grabbing efficiency, but also ensure that the cargo will not spill during the lifting process. Grab usually has an automatic opening and closing mechanism, which controls its opening and closing action through a wire rope or a hydraulic cylinder.
Third, the lifting mechanism is responsible for lifting and lowering the grab bucket, which includes components such as winches, wire ropes, and pulley blocks.
In addition, the travel mechanism enables the whole machine to move on the track so as to cover the entire length of the quay and reach different locations of the ship. The travel mechanism is usually driven by an electric motor and cooperates with a gear transmission system to achieve smooth and fast movement. In addition, in order to ensure the stability and safety of the equipment on the track, the travel mechanism is also equipped with anti-skid devices and limit switches.
Features:
-
01
Efficient loading and unloading capabilities
Grab ship unloaders could quickly and efficiently handle large quantities of bulk cargo, such as coal, ore and grain. Their powerful lifting mechanism and advanced control system enable high-speed, smooth operation, ensuring the ability to handle thousands of tons of cargo per hour. This high efficiency not only reduces the time that ships stay in ports, but also significantly improves overall logistics efficiency.
-
02
Versatility and adaptability
The grab ship unloader has a variety of grab types, which can be replaced and adjusted according to different cargo types, such as bulk, granular or powdery. For example, the double-rope grab is suitable for bulk materials, while the multi-petal grab is suitable for handling fine granular or powdery cargoes.
-
03
Advanced control system
With advanced automated control systems, including intelligent path planning, automatic identification of cargo status, and optimized grabbing strategies. These systems not only improve operational accuracy and reduce the possibility of human error, but also support semi-automatic or fully automatic operation modes, further improving work efficiency and safety.
-
04
Environmentally friendly and energy-saving
The new grab ship unloader pays more attention to energy saving and emission reduction in design. The use of efficient drive system and optimized hydraulic control technology significantly reduces energy consumption and emissions.

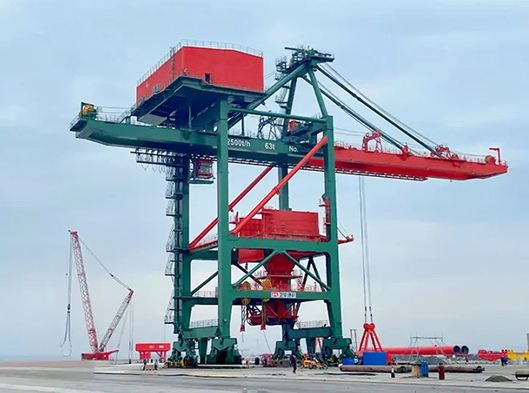

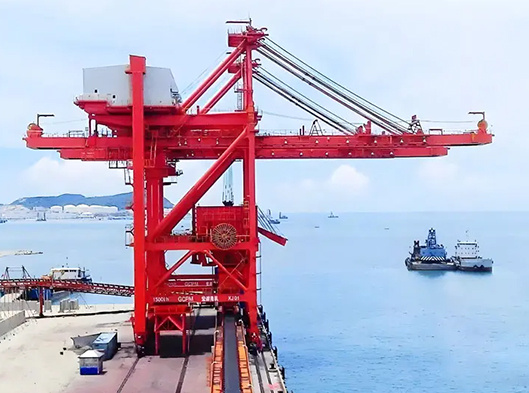

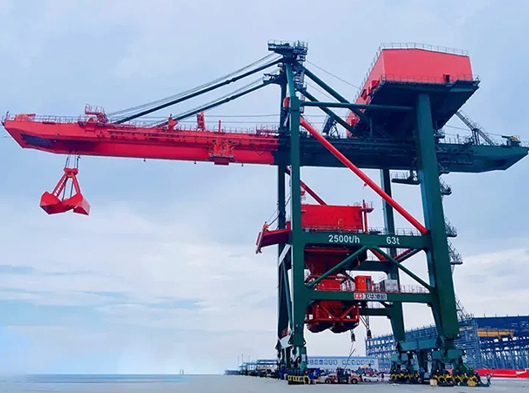

View Our 2500-ton Grab Ship Unloader Crane at the Port:
Grab bucket type ship unloader is designed for coal, ore, and bulk material handling, with reliability in harsh port conditions. Ideal for Coal & Mineral Terminals, Bulk Cargo Ports, Industrial & Power Plant Docks. Features include auto-grab opening/closing, deep-digging optimization, and semi-automatic operation for precision handling. Equipped with anti-sway technology to minimize boom oscillations and extend equipment lifespan1. Need a custom solution? Contact us today!
Structures:

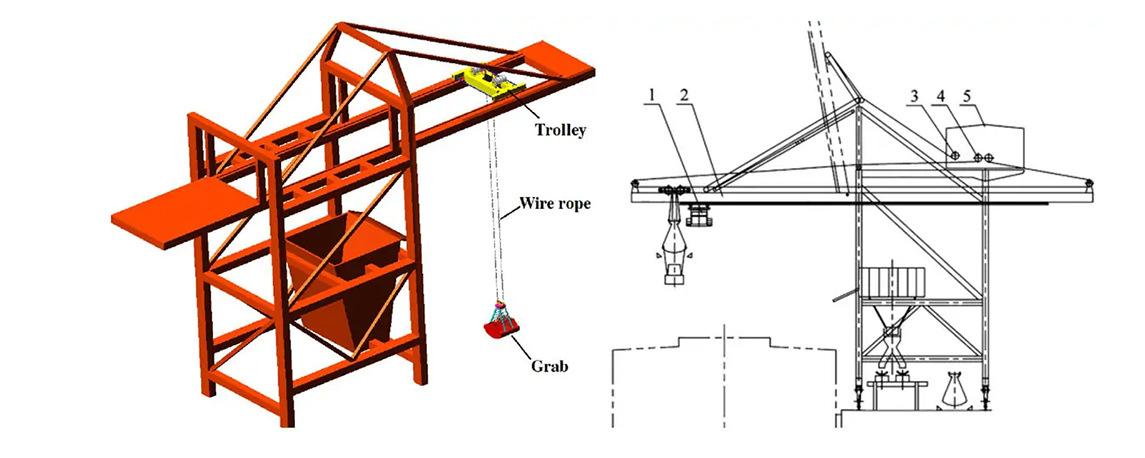

A grab ship unloader crane mainly consists of the metal structure, mechanism, electrical control system, and other components.
-
The metal structure includes the main beam, the gantry, the drawbar, etc. The mechanism includes a lifting mechanism/opening/closing mechanism.
-
The mechanism includes a lifting mechanism/opening/closing mechanism, a trolley running mechanism, a trolley traveling mechanism, and a boom tilting mechanism.
-
The electrical control system mainly includes the power supply and distribution system, drive and control system, protection system, and so on.
-
Grab ship unloader cranes can be divided into self-propelled and traction type according to the driving method of the trolley.
Applications:
- Coal terminal: Grab ship unloaders are widely used in coal loading and unloading operations, and can quickly and efficiently unload coal from cargo ships to storage yards or transport vehicles.
- Ore terminal: Mineral resources such as iron ore and copper ore are usually transported by large cargo ships. Grab type ship unloaders can quickly and accurately unload these ores from ships for subsequent transshipment or storage.
- Grain terminal: Agricultural products such as grains and soybeans occupy an important position in international trade. Grab ship unloaders can quickly complete loading and unloading tasks while ensuring the integrity of the goods.
- Railway freight station: In some large railway freight stations, grab ship unloader cranes are to handle bulk cargo such as coal and ore transported by rail to ensure that the goods can be quickly transferred to the destination.
- Inland ports and multimodal transport hubs: Inland ports and multimodal transport hubs are also important application scenarios for grab ship unloaders. They can effectively connect water, rail, and road transportation to achieve efficient cargo distribution.
- Mines: At the mine’s export dock or transshipment point, grab bucket ship unloaders are used to load mined ore onto ships, or to unload imported machinery and materials into the mine.
Parameter:
| Rate production capacity | 1250 | t/h |
| Limit capacity | 1400 | t/h |
| Ship size | 50000 | DWT |
| Hoisting capacity | 32 | t |
| Span | 22 | m |
| Base | 18 | m |
| Width of the belt conveyor | Out rail waterside 28, In rail waterside 12 | m |
| Luffing angle of boom | 0-80 | ° |
| Volume of hopper | 75 | m3 |
| Hoisting speed | 110~150 | m/min |
| Travelling speed | 22 | m/min |
| Cabin travelling speed | 20 | m/min |
| Max.. working Load of Wheel | 2.5 | m |
| Boom hoisting time, one way | 7 | Min |
| Crane rail recommendation | 350 | kN |
| Max.. working Load of the Wheel | QU100 | |
| Motor capacity | 1240 | kW |
| Power supply | ( H.V cable reel) 10kV 50 Hz | |
