NR European Electric Hoist
European electric hoist is a popular lifting equipment for material handling. It is compact and lightweight, suitable for use in factories, warehouses, etc.
- Lifting Capacity:1 to 20 Ton
- Lifting Height:3 to 30 Meter
- Working Class:M4-M7
Product Description:

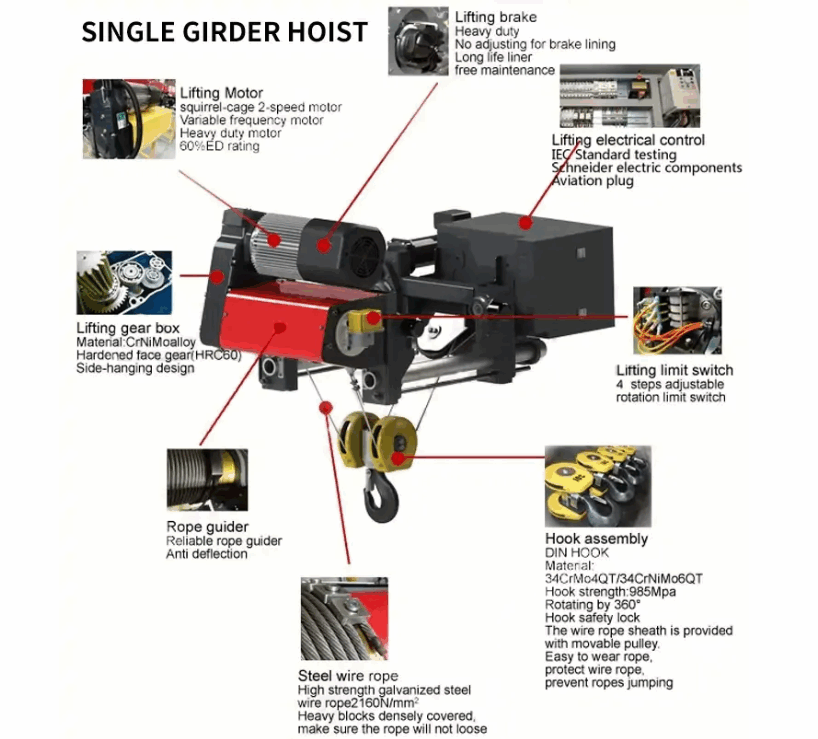

European electric hoist is a popular lifting equipment for material handling. It is compact and lightweight, suitable for use in factories, warehouses, etc. As an ideal hoisting mechanism, it often matches with overhead cranes and gantry cranes. It needs the main beam to support the entire electric hoist and moves along the track. Its electric motor provides power source for lifting tasks. Beside these parts, European hoist also has reducer, drum set, hook and electrical control system. The reducer reduces the speed of the motor and increases the torque so European hoist could meet the needs of lifting heavy objects.
Features:
-
01
Compact design
European electric hoist is more compact, which could operate in limited spaces and adapt to smaller installation spaces.
-
02
High efficiency and energy saving
With advanced motor technology and optimized design, European electric hoists can reduce energy loss during use and achieve energy saving.
-
03
Lightweight
Due to the use of high-strength materials and optimized structural design, European electric hoists are lighter than traditional products and are easy to install and move.
-
04
High-precision control
With advanced control systems, it can achieve smooth starting, stopping and speed adjustment, improving work safety and efficiency.
-
05
Long life
High-quality manufacturing processes and materials used increase the durability of the equipment and reduce maintenance costs.
-
06
Low noise
The noise level generated during operation is reduced by improving gear design and other noise reduction measures.
-
07
Compliance with international standards
European electric hoists usually follow strict European safety and technical specifications to ensure product quality and user safety.
Application:
It is a quite popular and also essential lifting machine in many industries.
- Manufacturing: In the automobile manufacturing, mechanical processing, electronic assembly and other industries. It is for the handling of parts on the production line, hoisting operations during the assembly process, etc.
- Warehousing and logistics: In warehouses and distribution centers. European electric hoists can be installed on rails for loading and unloading and stacking operations of goods.
- Construction industry: Inside buildings or on construction sites. It is for vertical transportation of building materials such as steel bars, glass curtain walls, etc.
- Iron and steel metallurgy: Common in steel plants and rolling mills.
- Electric power: During the construction and maintenance of nuclear power plants, thermal power plants, and hydro-power plants, European electric hoists do auxiliary hoisting during equipment maintenance.
Parameter:
| Type | Load Capacity(T) | Lifting Height(m) | Lifting Speed (m/min) | Traveling Speed | Lifting Motor Power(kw) | Rope Dia. (mm) | Group(ISO) | Rope Reeving |
| (m/min) | ||||||||
| Single Girder | 3.2 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 3.2/0.45 | 7 | M5 | 4/1 |
| 5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 9 | M5 | 4/1 | |
| 6.3 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 9 | M5 | 4/1 | |
| 8 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 13 | M6 | 4/1 | |
| 10 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 13 | M5 | 4/1 | |
| 12.5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 12.5/1.9 | 13 | M5 | 4/1 | |
| Double Girder | 5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 11 | M5 | 4/1 |
| 10 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 15 | M5 | 4/1 | |
| 12.5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 12.5/1.9 | 15 | M5 | 4/1 | |
| 16 | 6/9/12/15/18 m | 4/0.6 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 20 | 6/9/12/15/18 m | 4/0.6 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 20 | 6/9/12/15/18 m | 3.4/0.5 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 25 | 6/9/12/15/18 m | 3.4/0.5 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 40 | 6/9/12/15/18 m | 4.9/0.8 | 20/5 | 38 | 20 | M5 | 4/1 | |
| 63 | 6/9/12/15/18 m | 3.3/0.5 | 20/5 | 38 | 20 | M5 | 4/1 |
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
