HD Type European Single Girder Bridge Crane
The European type electric single beam overhead crane adopts lightweight, modular and parametric design. Its lifting mechanism adopts the NR type wire rope electric hoist with superior performance and advanced technology.
- Lifting Capacity(ton):1~20 ton
- Lifting Height:6-30 meter
- Span(m):3~34.5 meter
Product Description:
The HD type European electric single-girder bridge crane features an electrical, lightweight, modular, and parametric design. Its lifting mechanism adopts the NR type wire rope electric hoist with superior performance and advanced technology. And its operating mechanism adopts the three-in-one drive device. It also has an advanced frequency conversion speed regulation control system.
The European overhead crane features advanced technology and is designed by international standards: DIN (Germany), FEM (Europe), and ISO (International). It offers advantages such as high rigidity, lightweight construction, and outstanding structural design, effectively saving factory space and investment costs. Its walking structure has unique characteristics.
Features:
-
01
Main Beam
The lower flange track is made of I-beam steel, providing a running path for the electric hoist to perform lifting operations.
-
02
End Beam
Welded to the main beam to form the bridge frame structure, supporting the overall structural stability during operation.
-
03
Electric Hoist
Moves along the I-beam steel of the main beam, equipped with a large-diameter drum to effectively increase lifting height and reduce lateral limit blind spots.
-
04
Drive Type
Independent cone motor braking with open-gear transmission.
-
05
Operation Modes
Supports three control methods: ground-based control handle, wireless remote control, and cab (open/closed options available).

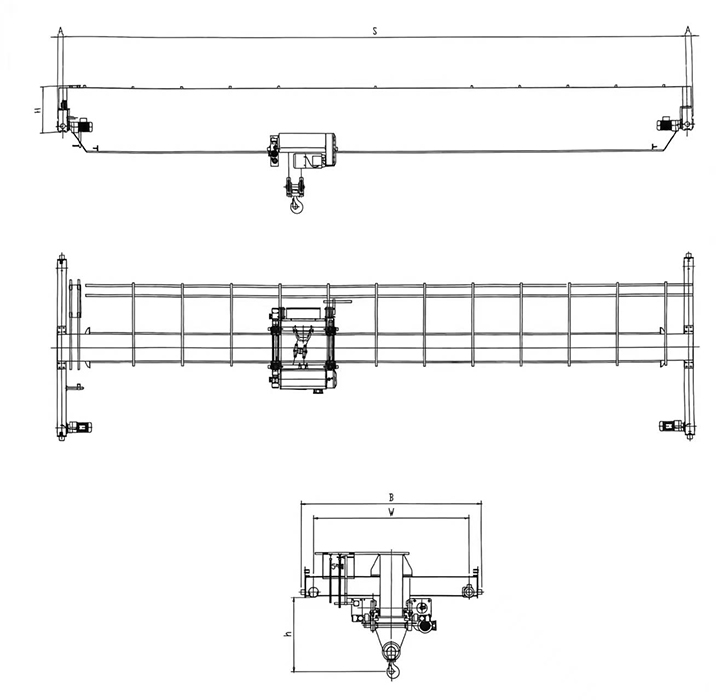

Components of European Single Girder Bridge Crane:
The European Single Girder Bridge Crane primarily consists of a main girder, end beams, an electric hoist, and a running mechanism, constructed by welding steel plates and I-beams. It features a lightweight structure and convenient installation and maintenance.

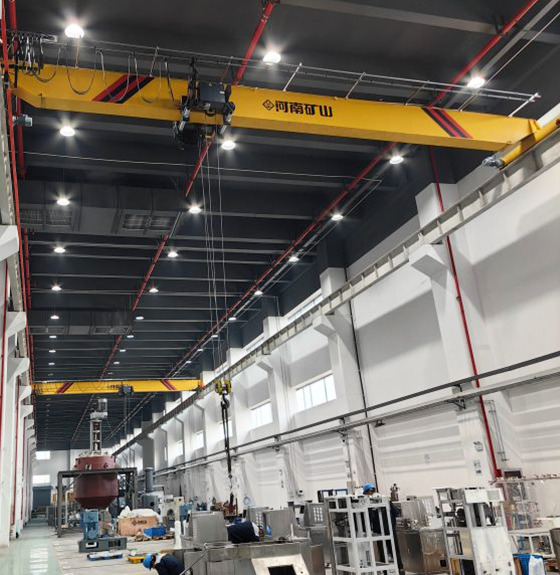

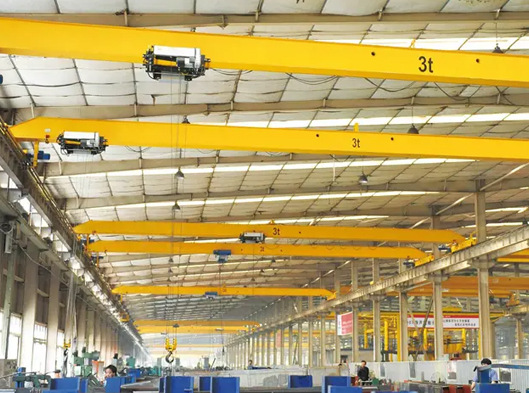

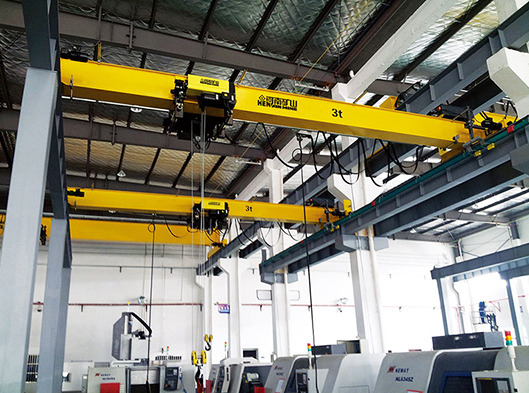

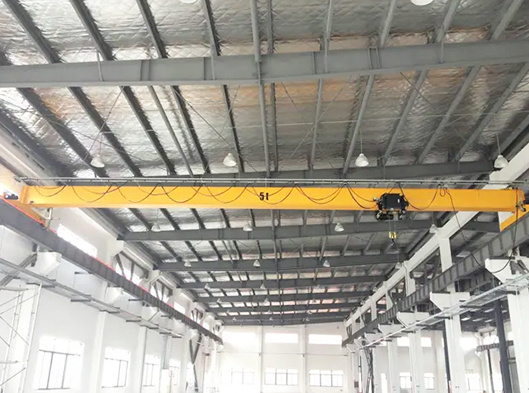

Applications:
European single-girder bridge crane is suitable for lifting and handling in workshops, warehouses, and power stations. It could handle different lifting tasks with efficiency. But it is also important to remember not to use it in the environment of flammable, explosive, and corrosive media. It could improve your working efficiency and solve your lifting problems.
- Compact structure, small limit size: space-saving and easy installation.
- Frequency conversion speed regulation: smooth operation, and greatly improved efficiency.
- Perfect protection device, safe and reliable: ensuring the safety of equipment and operation.
- Integrated drive, energy efficient: energy saving and reducing daily cost.
- Silent drive, low noise, and environmental protection: making a comfortable working condition.
Parameter:
| Lifting capacity | t | 1 | 2 | 3 | 5 | 10 |
| Lifting height | m | 6/9/12 | 6/9/12 | 6/9/12 | 6/9/12 | 6/9/12 |
| Lifting speed | M/min | 5/0.8 | 5/0.8 | 5/0.8 | 5/0.8 | 5/0.8 |
| Working class | A5 | A5 | A5 | A5 | A5 | |
| Trolley traveling speed | M/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane traveling speed | M/min | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 |
