Low Headroom Overhead Crane

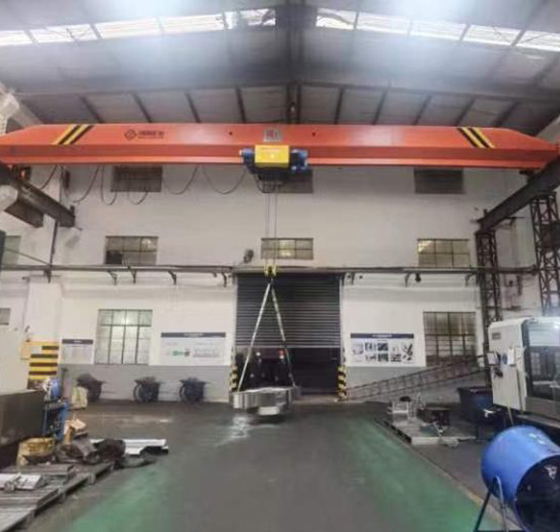

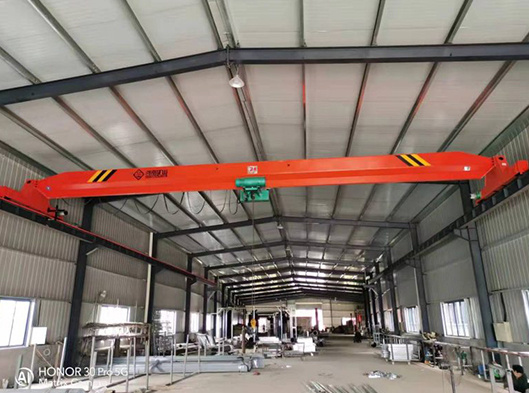

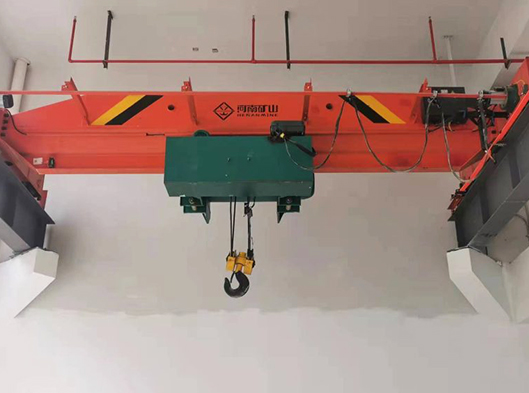

Low-headroom overhead cranes are lifting equipment specifically designed for low-ceiling factories. By highly integrating the hoist trolley with the pulley block, they maximize the effective lifting height achievable within the same factory height.
- Capacity(ton):1 ~ 20 tons
- Span(m):Up to 28.5 meters
- Working Class:A1-A3
Product Description:
Low-headroom overhead cranes are an ideal solution for addressing insufficient headroom in factory buildings. Through a unique structural design, they significantly reduce the height of the lifting mechanism, making their overall height approximately 0.3 to 0.5 meters lower than standard single-girder cranes. This advantage directly maximizes the utilization of vertical space in the workshop, effectively increasing storage capacity and improving material handling efficiency without requiring expensive structural modifications. They are particularly suitable for space-constrained factories, workshops, and warehouses, helping users maximize space efficiency in a more economical way.
Features:
-
01
Simple and Compact Appearance
Maintains a modern architectural style while minimizing space required in the work area.
-
02
Easy Maintenance
The relatively simple structure makes maintenance more convenient and quick.
-
03
Highly Customizable
Parameters such as span, lifting capacity, and lifting speed can be adjusted according to specific needs to meet the requirements of different application scenarios.
-
04
Multiple Safety Measures
Real-time monitoring and overload protection devices automatically alarm and shut down in case of overload.
-
05
Space Saving
Suspended directly from the roof beams of the factory/warehouse via end beams, eliminating the need for additional ground tracks or support columns, saving ground space.
Applications of Low-Headroom Overhead Cranes:
Low-headroom overhead cranes are characterized by their compact structure, space-saving design, and moderate load capacity, making them suitable for various industrial scenarios with strict vertical space limitations. Their main application areas include:
-
Small to medium-sized machining workshops:
Lifting small parts or semi-finished products such as gearboxes and shafts; the compact design avoids interfering with ground-based processing equipment.
-
Electronics and instrument factories:
Moving light and precision equipment such as circuit boards and test benches; smooth operation with low vibration protects sensitive electronic components.
-
Medium-sized logistics warehouses:
oading and unloading small pallets, cartons, and bulk materials; the low headroom design maximizes the preservation of ground storage space.
-
Equipment repair workshops:
Lifting small to medium-sized repair parts such as motor housings and pump bodies; flexible coverage of multiple workstations reduces the risks associated with manual handling.
Parts:
Low-headroom overhead cranes are compact lifting devices that optimize pulley arrangements to enable hooks to operate closer to the ceiling, effectively maximizing vertical space utilization in industrial facilities. Their primary components include:
- Main and End Beams: Form the primary load-bearing structure of the crane, traveling longitudinally along the rails.
- Hoist Trolley: Moves horizontally along the main girder rails, integrating the hoisting mechanism (including motor and wire rope drum), low-headroom pulley block, and hook.
- Power and Control System: Includes drive motors, brakes, electrical cabinets, and ground controllers or operator cabs.
- Safety Devices: Such as limit switches and overload limiters, ensuring operational safety.
Parameter:
| Lifting capacity | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 20 ton | 32 ton |
| Span | 7.5-31.5 m | ||||||
| Lifting height | 6m, 9m, 12 m | ||||||
| Lifting speed | 8(8/0.8) m/min | 7(7/0.7) m/min | 3.5(0.35/3.5) m/min | 3.3(0.33/3.3) m/min | |||
| Hoist traveling speed | 20 m/min | ||||||
| Crane traveling speed | 20(30) m/min | ||||||
| Working class | A3, A4, A5 | ||||||
| Power | Three phrase; 380V, 50Hz | ||||||
Note: Can be customized design according to your needs.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
