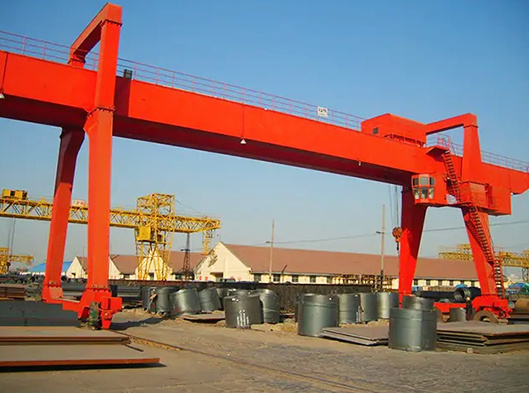

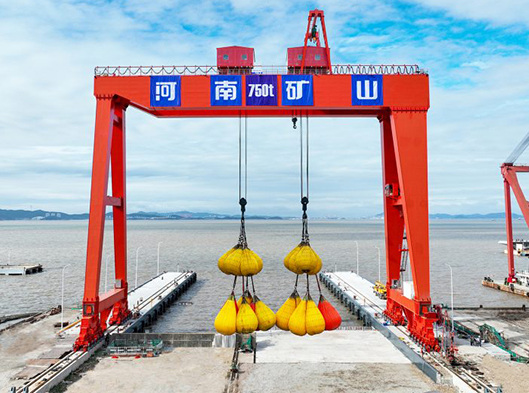

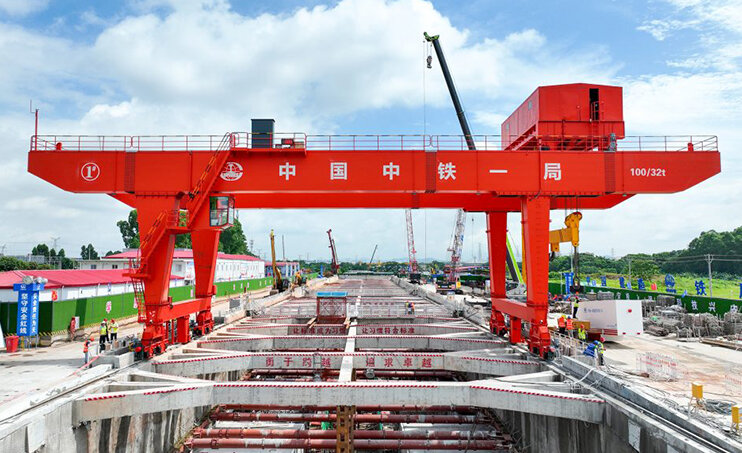

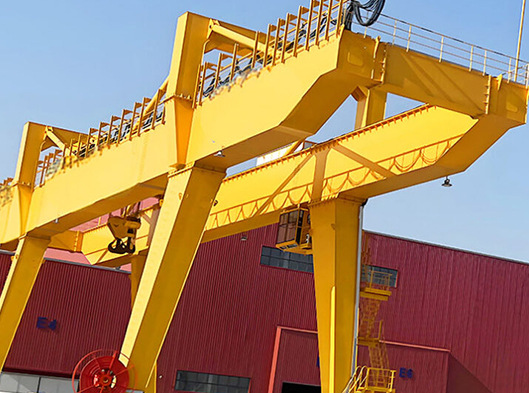

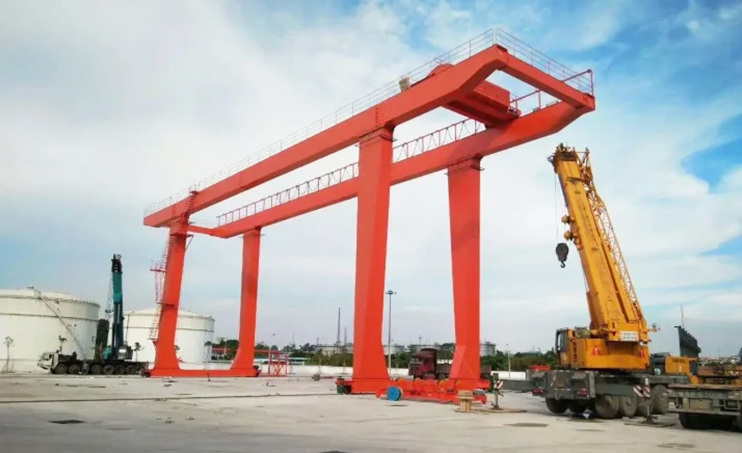

MG Double Girder Gantry Crane
The MG double-girder gantry crane has become a mature and reliable lifting solution from Nucleon. It is widely recognized for its exceptional durability, safety, and reliability.
- Lifting Capacity:5-800 ton
- Lifting Height:10—22.5 meters
- Span:18—36 meters
Product Description:

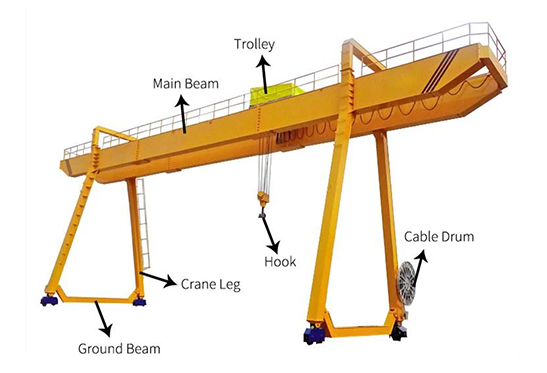

The MG double-girder gantry crane (also known as the MG crane) has become a mature and reliable lifting solution from Nucleon. It is widely recognized for its exceptional durability, safety, and reliability. Featuring a robust double-girder structural design, this equipment offers higher load capacity and stability, making it particularly suitable for cargo lifting and material handling operations in outdoor environments such as freight yards, warehouses, ports, and construction sites. The system incorporates a classic parallel-axis hoisting mechanism and trolley travel mechanism, ensuring smooth operation and precise positioning.
Features:
-
01
Strong Structure and High Rigidity
Double-girder design has superior strength, stability, and long service life.
-
02
Heavy Lifting Capacity
Easy for handling large loads and major lifting tasks with outstanding performance.
-
03
Reliable Safety Protection
Equipped with an overload limiter, emergency stop, and other safety systems for secure operation.
-
04
Easy Operation & Maintenance
Simple control system enables smooth operation and convenient maintenance.
-
05
Wide Application Range
Ideal for outdoor cargo handling in factories, warehouses, ports, and construction sites.
-
06
Customizable Design
Lifting capacity, span, and lifting height can be tailored to meet specific project requirements.
Application:
MG Double Beam Gantry Crane is a robust, high-capacity, and versatile heavy-duty lifting equipment widely used in manufacturing, metallurgy, construction, railways, ports, energy, and mining industries. It handles loading, unloading, transporting, and hoisting of large materials outdoors or in factory buildings without overhead cranes, making it particularly suitable for high-frequency, high-intensity operations.

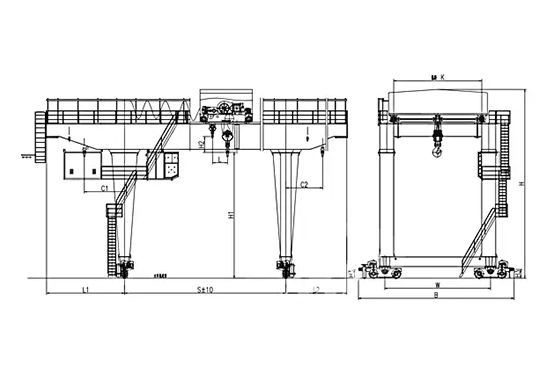

Parameter:
| Lifting Capacity | 5-800 ton |
| Work Duty | A5 |
| Span | 18-35m |
| Operating Temperature | -20~40 C |
| Lifting Height | 12-13.24m |
| Trolley Traveling | 33.9m/min |
| Crane Traveling | 3.4-34m/min |
| Control Method | Ground control or remote control |
| Power Supply | 3-Phase A.C. 50 Hz, 380V |
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
