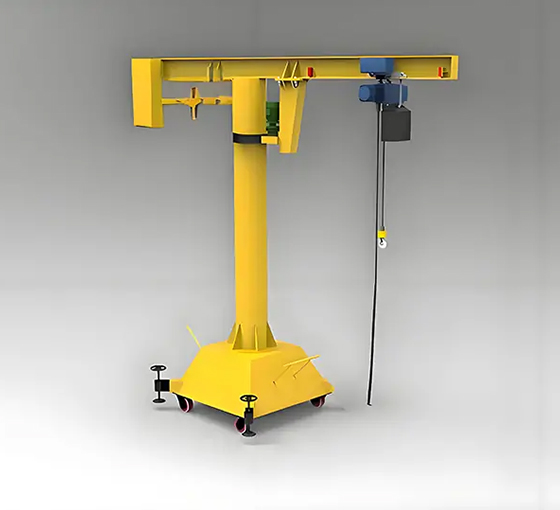

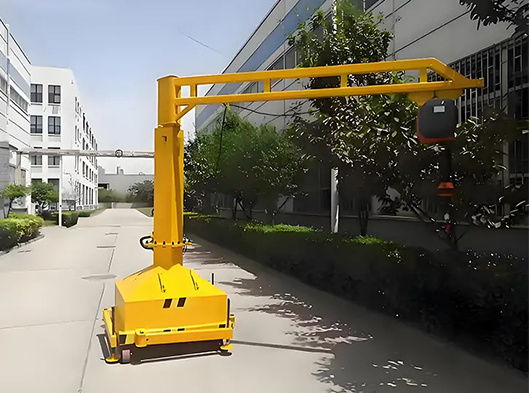

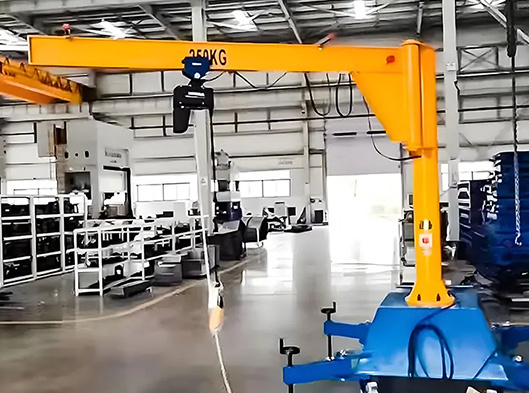

Mobile Portable Jib Crane On Wheels
Portable Column Jib Crane is a highly flexible and movable small lifting equipment. It adopts a unique slewing cantilever design and is equipped with electric chain hoist or electric wire rope hoist, which can realize flexible operation in 360° range.
- Capacity(t):0.5-2 ton
- Lifting Height(m):1-3 meter
- Working Grade:A3
Product Description:
The Portable Jib Crane on wheels is a highly flexible and movable small lifting equipment. It features a unique slewing cantilever design and is equipped with either an electric chain hoist or an electric wire rope hoist, enabling flexible operation over a 360° range. It is especially suitable for space-constrained areas, such as low-ceilinged spaces, warehouses, and other environments where traditional traveling cranes cannot be installed, and is ideal for workshop equipment installation, cargo handling, and other operations.
Advantages of Portable Jib Crane:
-
01
Rated lifting capacity
0.5~20 tons, covering light to heavy-duty operation requirements.
-
02
Boom length range
2~10 meters, supporting customized design.
-
03
Model classification
BZ type (light/medium) and BZD type (heavy/medium).
-
04
Working temperature
-25°C~+40°C, adapting to a variety of environmental conditions.
-
05
Lifting mechanism
optional electric hoist or manual hoist to meet different operation requirements.
-
06
Slewing mechanism
equipped with an electric motor or manual control, flexible and convenient.
-
07
Main body material
High-strength Q235B manganese steel is used to ensure durability and stability.
-
08
Slewing angles of 90°, 180°, 270°, and 360° are available to adapt to different operating scenarios.
Application:
The portable industrial jib crane has a unique structural design and portable characteristics, especially suitable for limited space, the need for frequent movement, or temporary lifting operations. Specific applications are as follows:
- Production line applications: for automotive manufacturing, production line parts lifting, electronic product assembly line equipment handling, and heavy machinery assembly line workpiece positioning.

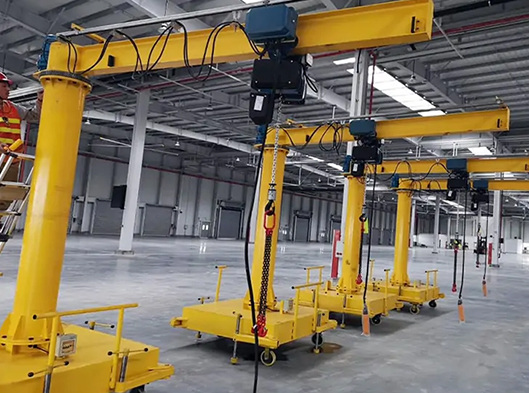

- Workshop applications: for machine tool loading and unloading assistance, equipment maintenance support, and material turnover handling.
- Warehousing and logistics applications: for warehouse cargo stacking, material loading and unloading operations, and shelf replenishment operations.
- Terminal and harbor applications: small ship cargo handling, container cargo handling, terminal equipment maintenance, etc.
Parameter:
| Lift capacity(T) | 1, 2, 3, 5, 10, 16, 20 | |||
| Span(M) | 7.5-22.5 | |||
| Mechanism traveling | speed(m/min) | 10, 20, 30 | 45, 60 | |
| motor | type | ZDY1 21-4 | ZDR12-4 | |
| power(kw) | 2*0.8 | 2*1.5 | ||
| speed(r/min) | 1380 | 1380 | ||
| Electric chain hoist or wire rope hoist | model | CD1/MD1/HHBB | ||
| lift height(m) | 3/25 | |||
| traversing speed(m/min) | 20,30 or can be customized | |||
| lifting speed(m/min) | 8(7); 8/0.8(7/0.7) | |||
| Workclassfication | A3-A5 | |||
| Power supply | 380V/50HZ or on request | |||
Note: The above parameters can be customized according to specific needs.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
