Wall Mounted Cantilever Jib Crane
Wall Mounted Cantilever Cranes is a small size crane lifting equipment. The structure of wall jib crane is quite simple and also compact.
- Capacity(t):0.5-1 ton
- Lifting Height(m):5-6 meter
- Working Grade:A3
- Description
- Advantages of Wall Mounted Cantilever Jib Crane
- Application
- Parameter
- FAQ
- Message
- Hot Products
Product Description:

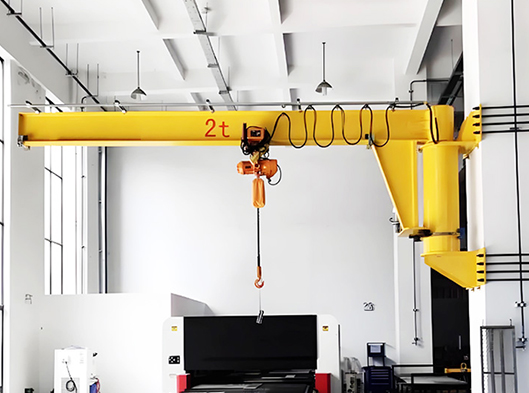

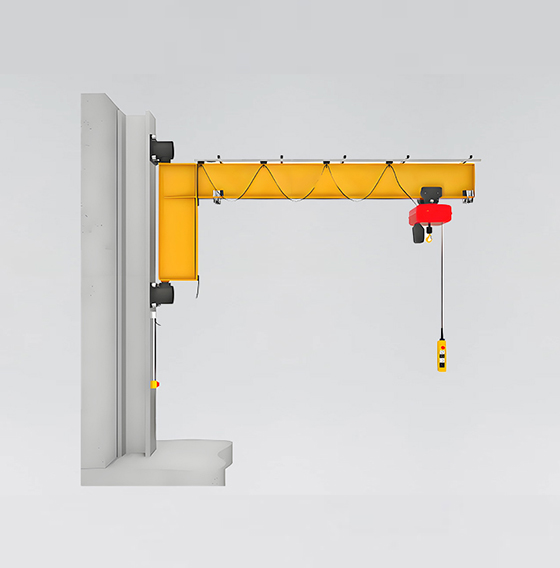

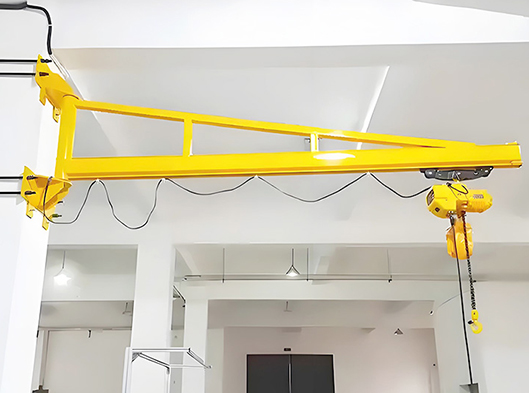

Wall Mounted Cantilever Crane is a compact and small lifting equipment, which is mounted on the wall or column, with the advantages of space saving, flexible operation, and easy maintenance. Its unique wall-mounted design does not take up floor space, especially suitable for space-constrained operating environments, such as small workshops, warehouse corridors, or equipment-intensive areas.
The equipment adopts modular, parametric structural design, an overall structure of the rugged, with excellent stability and reliability. The structural form can be divided into wall-mounted slewing cranes and wall-mounted cantilever jib cranes, both of which can be customized according to different working conditions.
Advantages of Wall Mounted Cantilever Jib Crane:
-
01
Space-saving
Wall-mounted installation, does not occupy the ground, especially suitable for space constraints or an existing equipment layout, compact workshop environment.
-
02
Simple structure, convenient installation
Directly fixed on the wall or column, without the need for independent columns, the installation and construction cycle is short.
-
03
Flexible rotation
The cantilever can be rotated within 180° (some structures can reach 270°), adapting to the lifting needs of different work areas.
-
04
Convenient operation and lifting efficiency
Equipped with electric hoists or manual hoists, easy to operate and suitable for frequent and short-distance lifting operations.
-
05
Strong load capacity
The load range can be customized according to the needs of use, with common loads ranging from 125kg to 2 tons, adapting to a variety of industrial scenarios.
-
06
Wide range of applications
Widely used in machinery manufacturing, assembly lines, warehousing, maintenance workshops, and other local material handling, to enhance operational efficiency and safety.
Application:
- Industrial production: Wall mounted cantilever jib crane is suitable for small factories and machine shops, used for lifting workpieces, components, or electronic products, etc., to improve production efficiency.
- Warehousing and logistics: Used in logistics centers and warehouses for loading and unloading, stacking and picking of goods, to improve handling flexibility.
- Commercial facilities: For supermarkets, distribution centers, and other places, for merchandise and fresh products handling operations.
- Construction: For lifting and transportation of construction materials and tools, as well as installation and removal of support equipment at construction sites.
- Household and individual workshops: Suitable for the handling of raw materials and finished products and for light lifting needs.
- Energy and port industry: For auxiliary lifting and overhauling operations at power stations, terminals, and other sites.

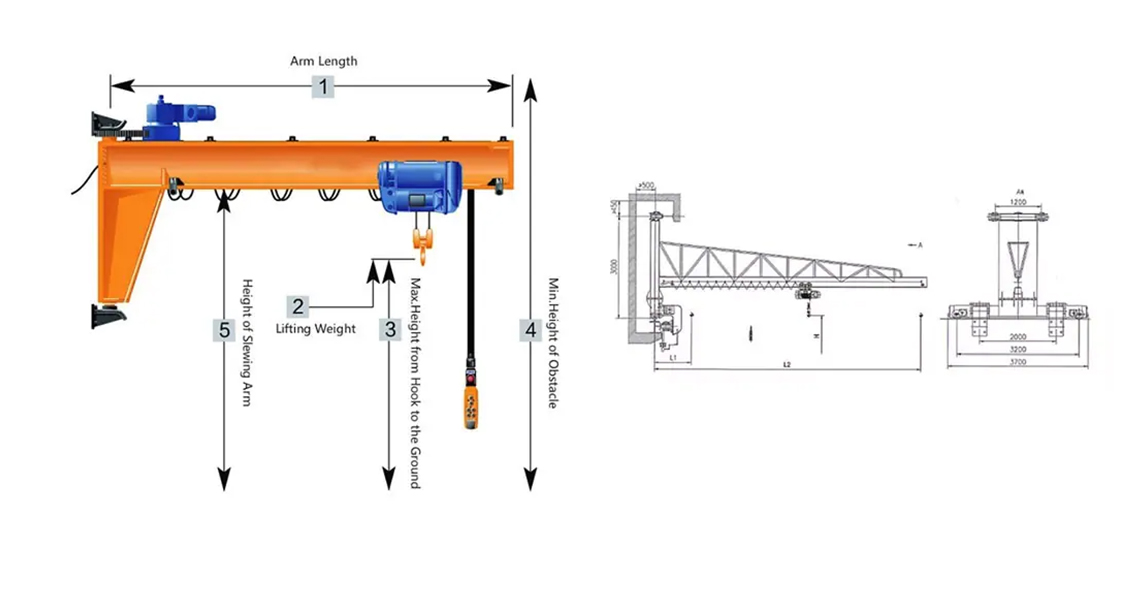

Parameter:
| Lifting capacity(t) | 0.25 ton | 0.5 ton | 1 ton | |||||||
| Lifting height(m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 5 | 5.5 | 6 | |
| Valid radius(m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | |
| Working system | A3 | |||||||||
| Lifting speed(m/min) | Slow speed | 0.8 | ||||||||
| Normal speed | 8 | |||||||||
| Circulate speed(m/min) | 20 | |||||||||
| Slewing angle(Degree) | 180 | |||||||||
| Centre height(m) | 1.2 | 1.6 | 2.56 | |||||||
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
