MG Type Double Girder Truss Gantry Crane
MG truss type gantry cranes are often portable, allowing them to be moved from one location to another within a facility or between working sites.
- Lifting Capacity(ton):40~100 ton
- Lifting Height(m):9~12 meter
- Span:20-40 meter
Product Description:
Truss Gantry Crane is a special lifting equipment designed with a framework composed of triangles to form a rigid structure. It has the advantages of stable structure, excellent performance, simple operation, convenient use, safety and reliability, easy disassembly, etc. Unlike fixed overhead cranes, MG truss gantry cranes are often portable, allowing them to be moved from one location to another within a facility or between working sites. This makes them ideal for temporary installations or for use in locations where permanent crane installation is not feasible.
Features:
-
01
Stable structure and excellent performance.
-
02
Simple operation, easy to use.
-
03
Safe and reliable, easy to disassemble.
-
04
Special design truss beam for more stable lifting.
Applications:

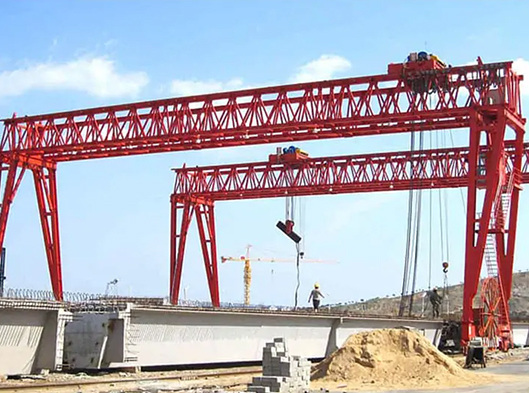

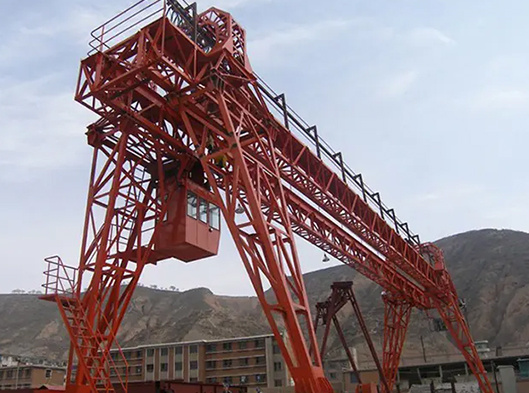

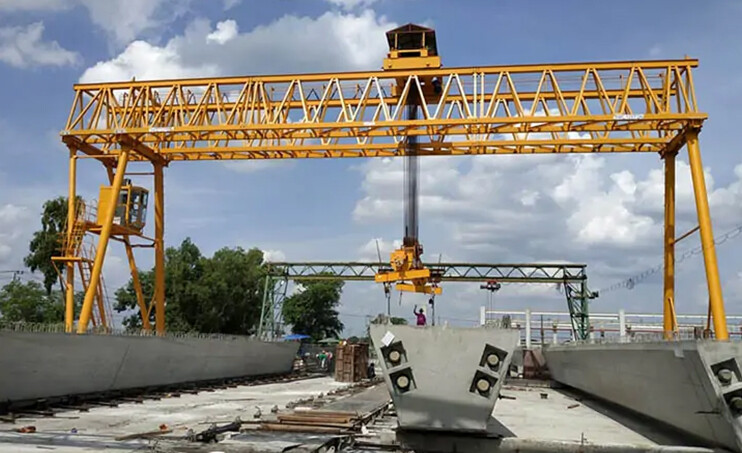

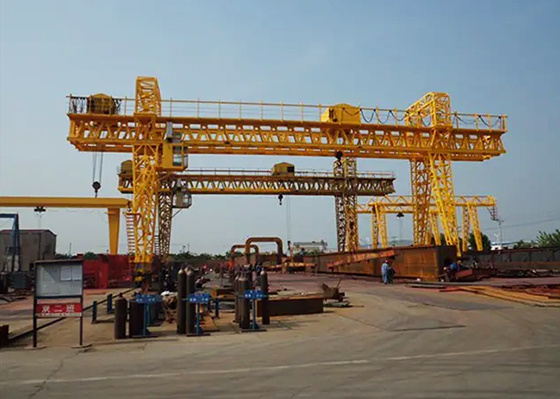

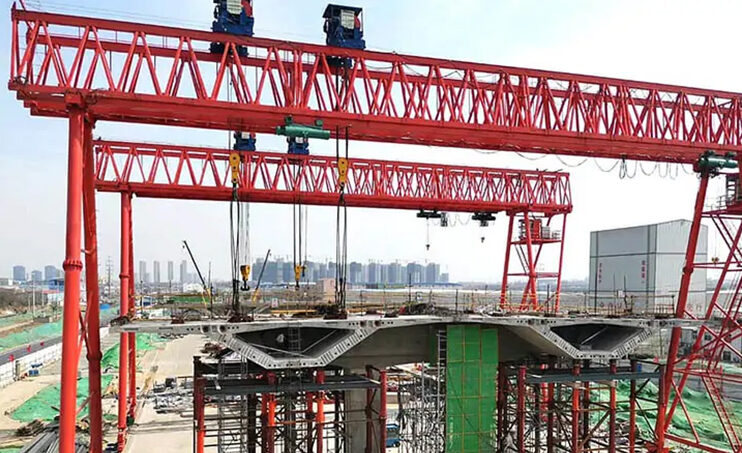

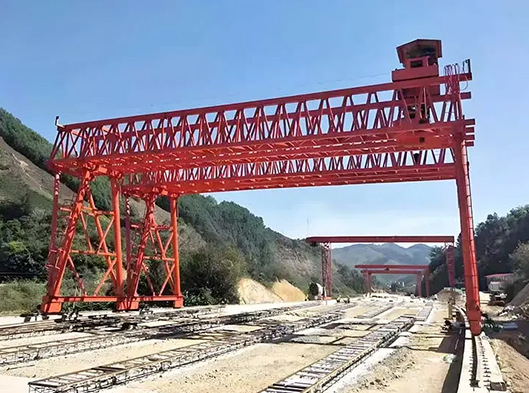

We mainly apply truss gantry crane in ports, shipyards, construction sites, and other industrial fields. It is popular in places which require heavy material handling due to its light structure and high strength.
- Railway freight yard: for loading and unloading of goods in railway transportation, especially for large or heavy goods.
- Water conservancy projects: During the construction of water conservancy facilities such as dams and reservoirs, lifting large hydraulic machinery and structural parts.
- Mining: in open-pit mines, directly loading ore for transportation after excavation, or transporting mineral raw materials in the ore dressing plant.

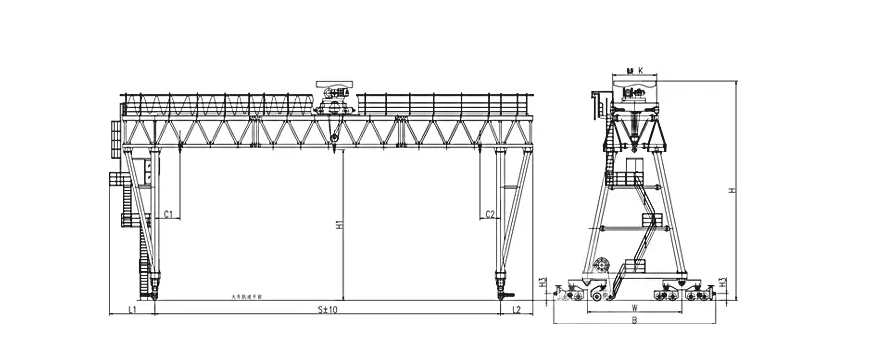

Parameter:
| Terms | Units | Parameters | ||||
| Loading capacity | t | 40 | 60 | 80 | 100 | |
| Span | m | 20~40 | 20~30 | |||
| Duty group | ISO | A5 | ||||
| Lifting speed | m/min | 1 | 0.95 | 0.8 | ||
| Trolley traversing speed | 10 | 10.5 | ||||
| Crane traveling speed | 14 | 15 | 13 | |||
| Total motor power | kW | 22.8~26 | 30 | 31.4 | 46.4 | |
| Power supply | 3ph 380V 50 Hz or customized | |||||
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
