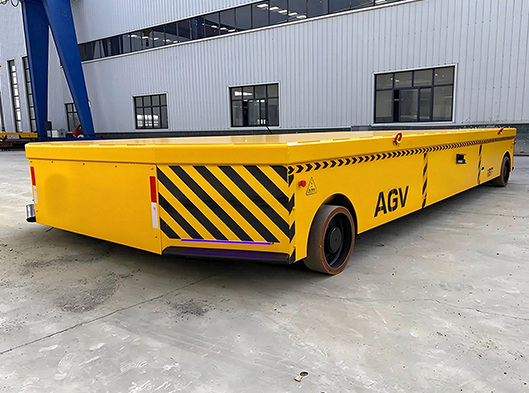

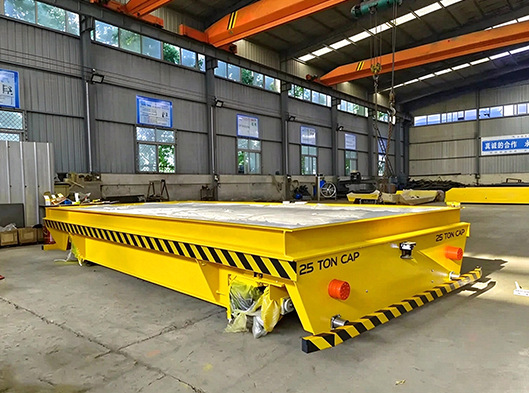

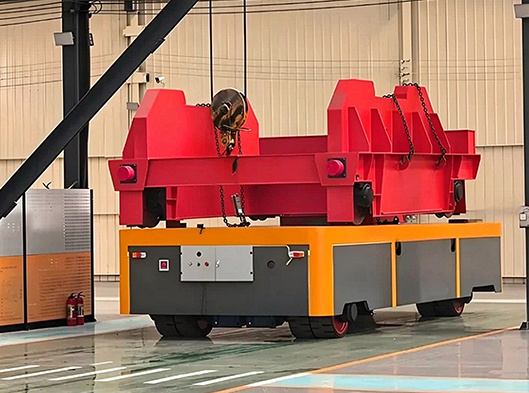

Electric Flatbed Cart
Electric flatbed carts are electrically driven handling equipment widely used in factories, workshops, and warehouses. They are mainly used for the efficient and stable transfer of heavy goods.
- Load Capacity:0.5 ～ 500 tons
- Running Speed:0 ～ 20 m/min
- Positioning Accuracy:＜±5 mm
Product Description:
Electric flatbed carts, also known as electric rail-mounted transport vehicles or trackless transport vehicles, move heavy materials efficiently and stably in factories, workshops, and warehouses. These electrically driven material handling systems support smooth and reliable transport operations in industrial environments.
Their main structure includes a frame, drive system, battery pack, motor, control system, and wheel set. Electric flatbed carts can run on pre-set tracks or move freely on the ground using rubber tires, combining path standardization with operational flexibility.
Parameter:
| Parameter Category | Key Parameter | Common Data Range | Remarks |
| Core Load Parameters | Rated Load Capacity | 1 ~ 300 tons | Higher capacities (e.g., 500+ tons) are customizable |
| Deck Size (L × W) | 2000 x 3000 ~ 6000 x 8000 mm | Most directly impacts layout and handling capability | |
| Deck Height (from ground) | 500 ~ 800 mm | Can be customized based on rail or docking equipment height | |
| Basic Performance Parameters | Travel Speed | 0 ~ 25 m/min | Full load speed, typically steplessly adjustable |
| Max. Wheel Load | ≤ 80 kN / wheel | Critical for rail/foundation design; increases with load | |
| Max. Gradability | ≤ 1% (Rail-guided), ≤ 3% (Trackless) | Trackless carts are more sensitive to slope | |
| Mechanical Structure Parameters | Wheel Diameter | 300 ~ 600 mm | Reflects load capacity and passability |
| Wheel Material | Cast Steel / 55Mn / Polyurethane Clad | Cast steel for highest load, PU protects floors & reduces noise | |
| Track Gauge (Rail-guided) | 1435 mm (Standard) or 1000 ~ 5000 mm (Custom) | Must match the wheelbase precisely | |
| Electrical & Control Parameters | Motor Power | 2.2 ~ 18.5 kW | Specific power correlates with load and speed |
| Protection Rating | IP54 / IP65 | IP54 for water splashing, IP65 for water jets (damp environments) | |
| Duty Cycle | S3 (25% / 40%) | Indicates motor's continuous working capability (e.g., 2.5 or 4 min work per 10 min cycle) | |
| Safety & Environmental Parameters | Ambient Operating Temperature | -20℃ ~ +40℃ | Special design required for extremes (e.g., high-temp/anti-freeze) |
| Alarm Sound Pressure Level | ≥ 75 dB | Ensures audibility in noisy environments | |
| Note: The data provided above is for general industry reference. Our professional engineers will finalize and design the product specifications based on your actual working conditions, materials handled, and budget. | |||
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
