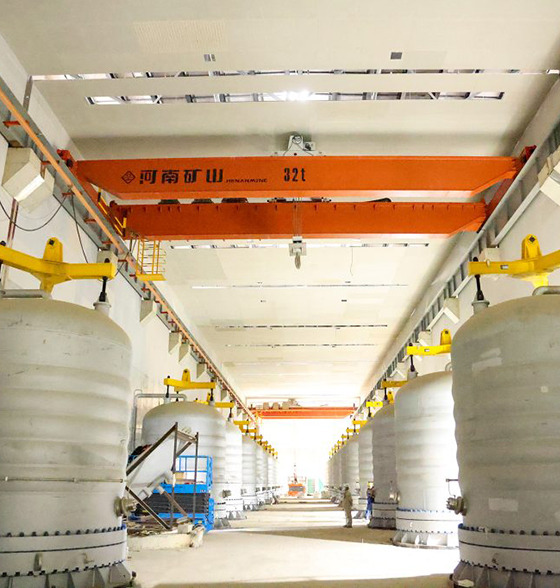

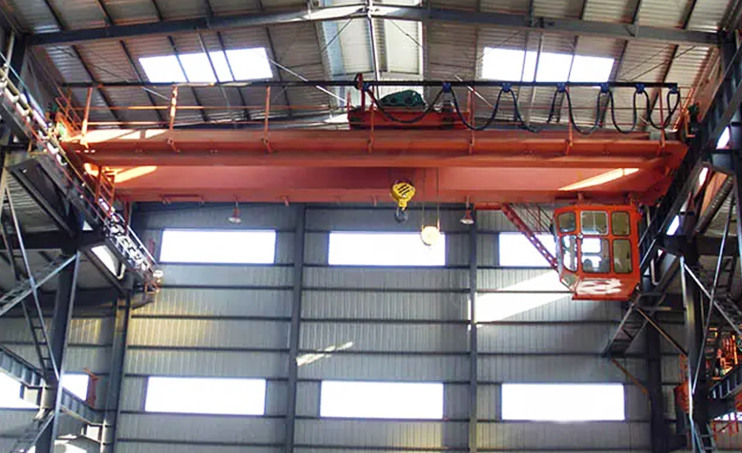

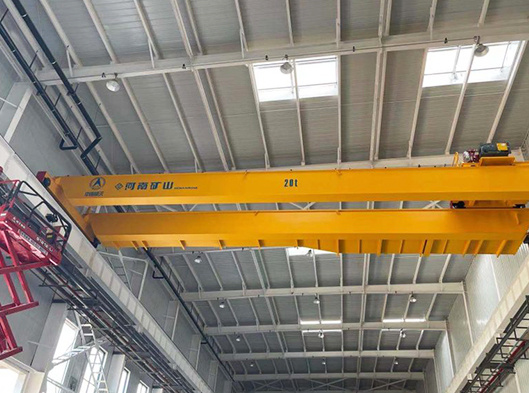

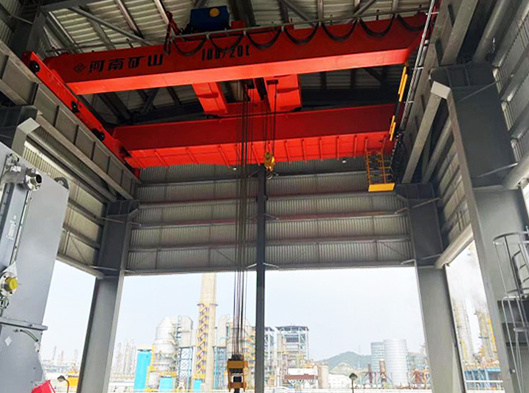

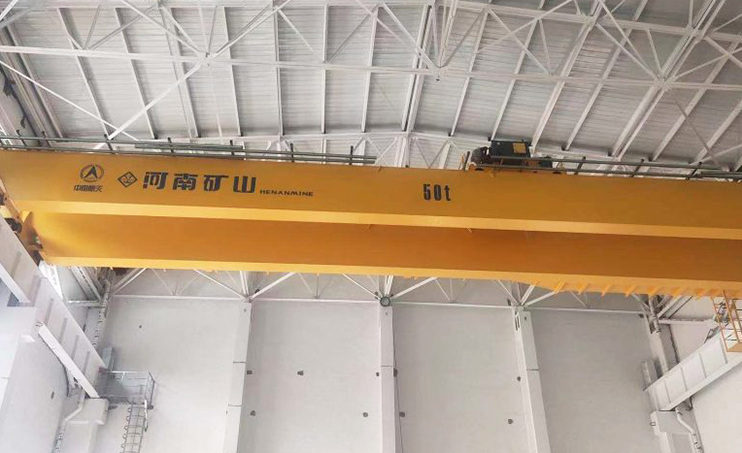

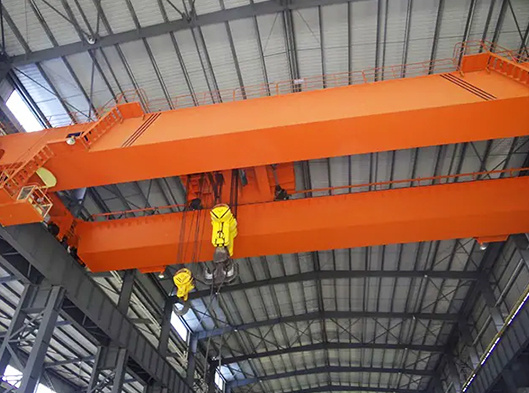

QB Explosion Proof Overhead Crane
QB explosion proof overhead crane is a kind of lifting equipment designed for flammable and explosive gas or dust environments.
- Model:QB
- Lifting Capacity:5~75 t0n
- Span Length:10.5~31.5 meter
- Working Grade:A4
- Ambient Temperature:-20℃~40℃
Product Introduction:
QB explosion proof overhead crane is a kind of lifting equipment designed for flammable and explosive gas or dust environments. Its main parts are made of explosion-proof structure and materials, which meet the strict requirements of the country and the industry for the explosion-proof level. It is widely used in the petroleum, chemical industry, natural gas, military industry, pharmaceutical industry, and other special industries that have very high requirements for safety.
The explosion-proof performance of all motors and electrical appliances of the explosion-proof hook overhead crane complies with GB3836.2-2000 “Explosion-protected electrical equipment for explosive gas atmospheres - Part 2:Flameproof enclosure 'd”. The overall performance of the crane complies with the provisions of the standard JB/T5897-2006 "Explosion-proof overhead cranes". The explosion-proof marks are ExdIBT4 and ExdICT4, respectively.
Features:
-
01
Explosion-proof design of the whole machine
Including motor, electric control system, such as brake, coupling, operating device, etc. all adopt explosion-proof treatment to meet the standard of Ex d IIB T4 and above grade.
-
02
Dust and poison prevention
Dust explosion-proof products are suitable for all kinds of combustible dust and T4 requirement areas, effectively preventing dust and harmful gases from entering the crane interior and affecting the normal operation of the equipment.
-
03
Safe and reliable
Equipped with explosion-proof limits, explosion-proof cables, explosion-proof lamps and explosion-proof operation button boxes to ensure the absolute safety of the operating environment.
-
04
Strong stability
The double main beam structure improves the carrying capacity and structural strength to meet the needs of medium and heavy lifting conditions.
-
05
Various operation modes
It can be equipped with cab, ground wired control or explosion-proof wireless remote control to adapt to different operation scenarios.
-
06
Smooth operation
Adopting low noise operation mechanism, smooth starting and braking, reducing the risk of explosion.
Components of Explosion Proof Overhead Crane:
-
Main beam and end beam:
double beam structure, welded with high-quality steel, optional anticorrosion coating treatment;
-
Explosion-proof electric hoist or hoisting mechanism:
the core components in line with the explosion-proof norms, lifting capacity of 5 ~ 100 tons above;
-
Running mechanism:
including explosion-proof drive motor, explosion-proof brake, and reducer;
-
Electronic control system:
explosion-proof electrical control box, cable, explosion-proof switch, explosion-proof lighting system;
-
Safety system:
explosion-proof Limiters, anti-collision devices, load limiters, and so on.
Applications:
QB explosion proof overhead cranes offer excellent explosion-proof performance and reliability, making them the ideal solution for material handling in hazardous areas. It is widely used in various industrial environments that require a high safety level. The following are its typical application industries and scenes:
- Petroleum refineries: used in crude oil storage tanks, oil refining equipment lifting.
- Chemical production workshop: handling containers and equipment of flammable gases and chemicals.
- Natural gas stations and filling stations: pressure vessel or pipeline installation operations.
- Pharmaceutical industry: used in clean rooms where dust or organic solvents exist.
- Military and arms warehouses: high-risk material handling environments that require strict explosion-proof requirements.

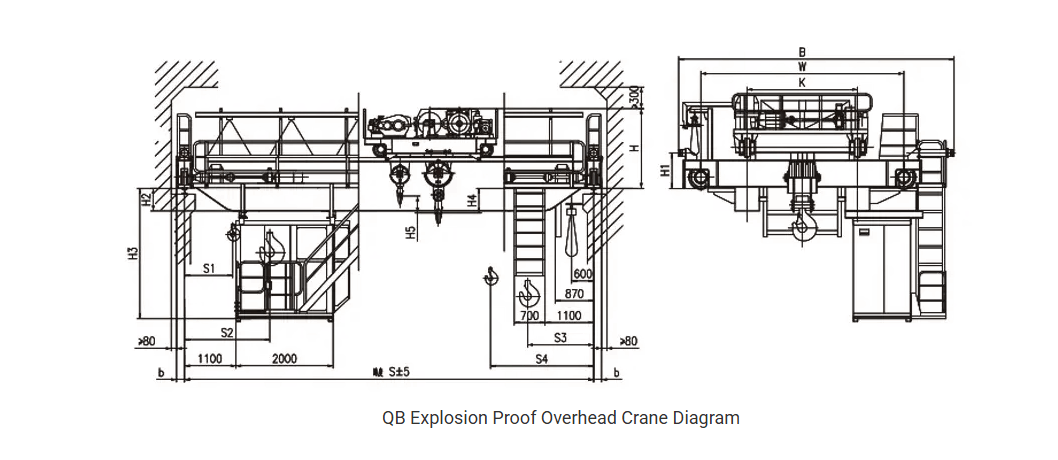

Parameter:
| Lifting Capacity | 5t | 10t | 16t | 20t | 32t | 50t | 75t | |||||
| Span | 10.5~31.5m | |||||||||||
| The signs of explosion-proof | ExdIIBT4(ExdIICT4) | |||||||||||
| Speed | Lifting(m/min) | 5 | 4.3 | 4.2 | 4.1 | 3 | 1.9 | |||||
| Traveling of electric hoist (m/min) | 19.6(14.6) | 20.5(14.6) | 20.5(13) | 20.5(13) | 20(12.3) | 20(12.3) | 19.1(15.3) | |||||
| Traveling a crane | 22.3(12) | 22.3(12)19(14.5) | 19(14.5)17(14.5) | 19(14.5)17(14.5) | 17(14.5)19.4(14.5) | 19.4(14.4) | 19.3(14.4) | |||||
| Traveling of a crane | 43kg/m | 43kg/m or QU70 | QU70 or 90*90 | QU80 or 90*90 | QU100 | |||||||
| Operational Model | Crane rail recommendation | |||||||||||
| Working Duty | A4 | |||||||||||
| Power Supply | According to your demands | |||||||||||
