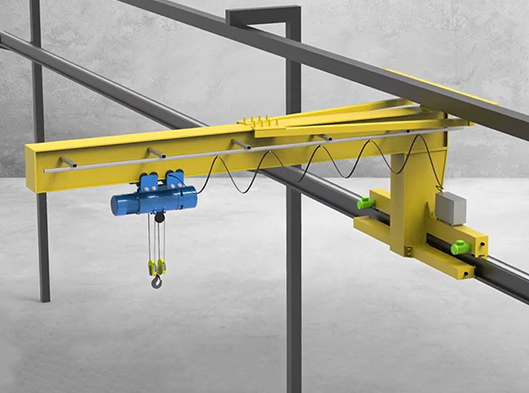

Wall Traveling Jib Crane
Wall traveling jib crane is based on the structure of traditional pilaster jib crane R & D design, is a kind of jib crane that can run along the wall or other supporting structure on the elevated track.
- Loading Capacity:0.25-5ton
- Lifting Height:2~10 m
- Span:5-12m
Product Description:
The wall traveling jib crane also called a wall running jib crane, offers a space-saving lifting solution specifically engineered for efficient material handling along walls or elevated structures. Unlike floor-mounted jib cranes, it requires no floor space or concrete foundations, making it particularly suitable for workshops, assembly lines, and warehouses with limited floor clearance. The crane operates smoothly on ASCE rails via an electric wall-travel mechanism, enabling seamless material movement across extended work zones without interfering with overhead crane operations. With a lifting capacity up to 15 tons and customizable span lengths, it delivers operational flexibility for diverse industrial applications.
Features:
-
01
Structural composition
composed of a bracket, a cantilever device, and an electric hoist, a compact structure, easy to install.
-
02
Rotation capacity
the cantilever can be rotated 180°, flexible coverage of the operating area.
-
03
Easy to install
it can be directly installed on the pillar of large steel structure buildings, and the installation position and height can be adjusted to meet different operational requirements.
-
04
Structural advantage
designed for short distance, high intensity, frequent lifting operations, energy efficient, labor saving operation.
-
05
Space advantage
no need to modify the building structure, does not occupy ground space, and achieves three-dimensional cargo transportation on a plane.
-
06
Convenient maintenance
simple structure, convenient operation and maintenance, saving labor costs.
-
07
High efficiency and energy saving
adopting electric drive, smooth operation, and low energy consumption.
Applications:

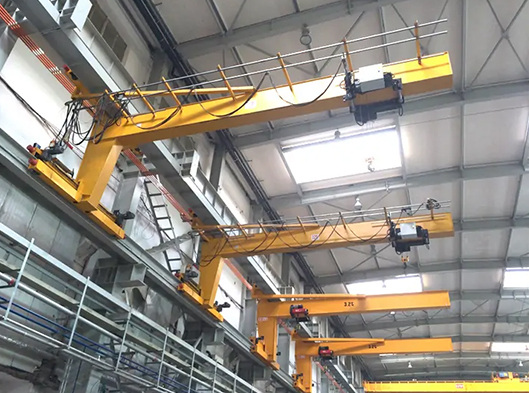

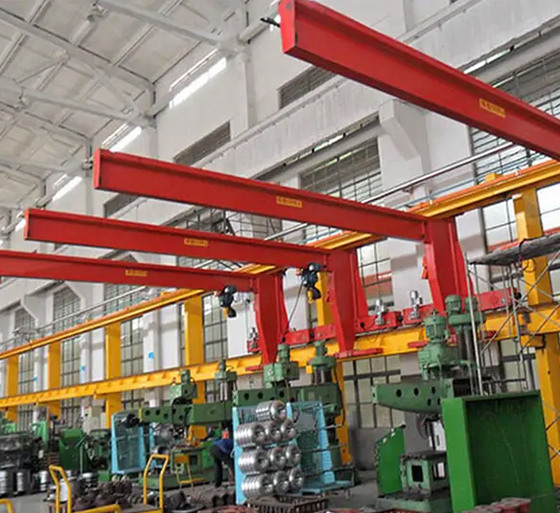

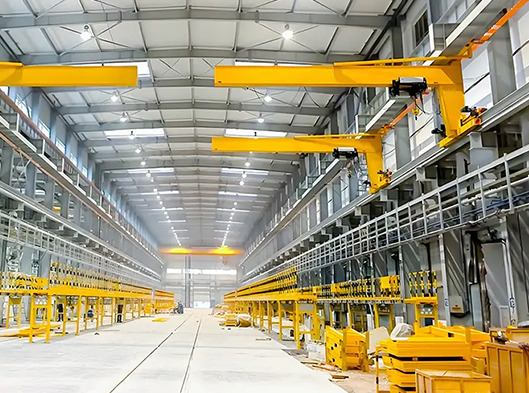

Wall-traveling jib cranes are used in workshops or warehouses with large spans and high building heights, and are more suitable when lifting operations are frequent near the walls. It can be widely used in factories, mines, workshops, production lines, assembly lines and machine tools, up and down work and warehouses, docks, and other occasions of heavy lifting.
- Large industrial workshop: used in production line material transfer, heavy equipment installation and maintenance, machine tool loading and unloading operations.
- Warehousing and logistics centers: applied to loading and unloading of goods in large warehouses, access to high shelves, and material handling in logistics sorting centers.
- Manufacturing and assembly workshop: used in assembly line, heavy parts lifting, semi-finished products and finished products transfer, production line equipment maintenance.

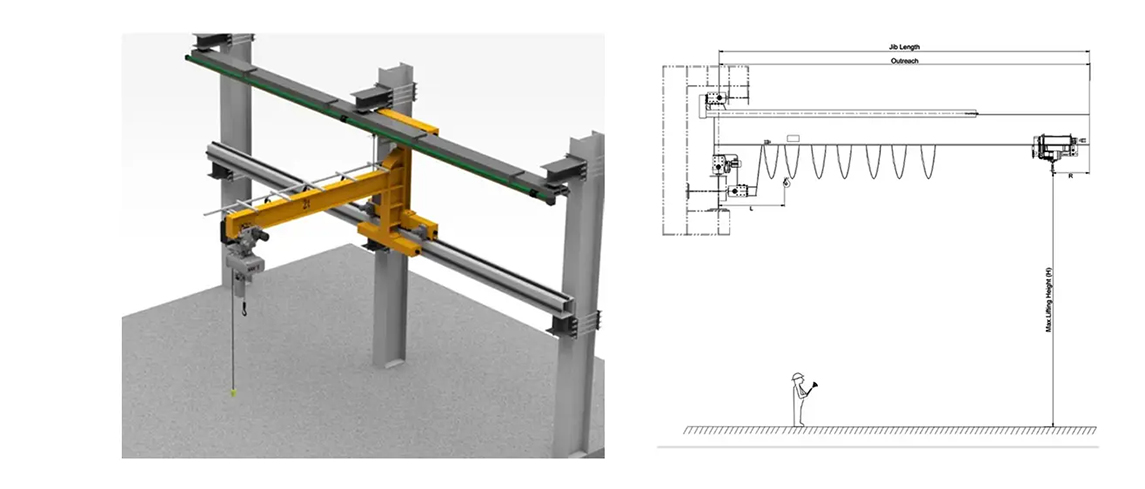

Parameter:
| Lifting Capacity | 0.5 ~5 ton |
| Lifting Height | 5~6 m |
| Lifting Speed | 8 M/Min |
| Traveling Speed | 20 M/Min |
| Max Length | 4.3~5.43 M |
| Total Weight | 389~420 KG |
| Slewing Angle | 180°,270°, 360° and customized |
