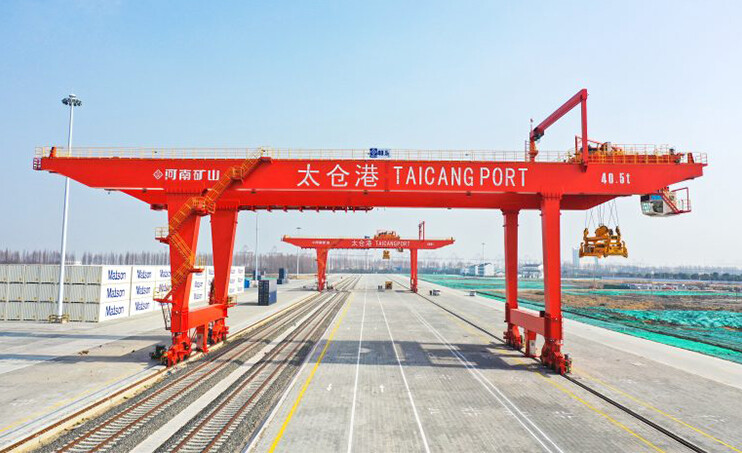

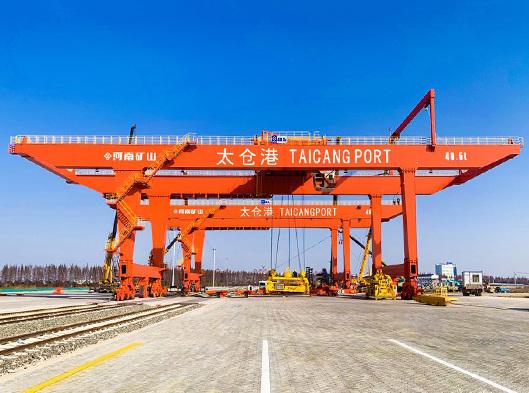

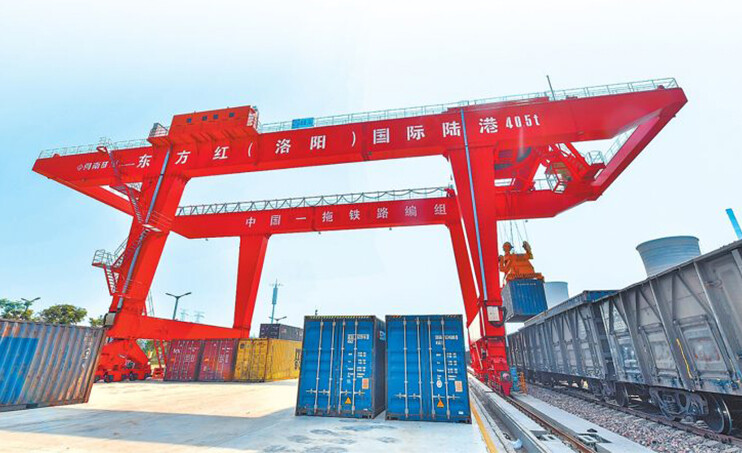

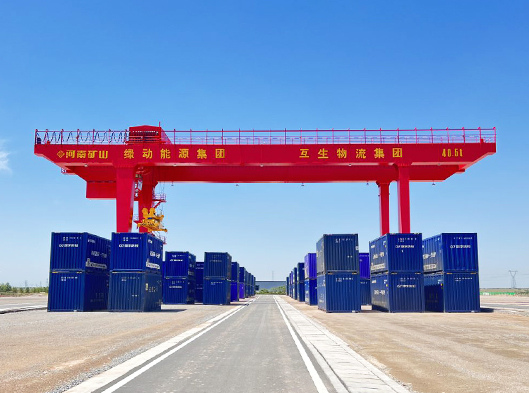

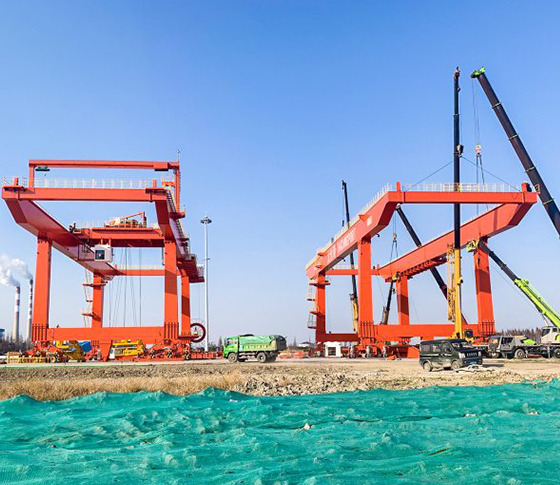

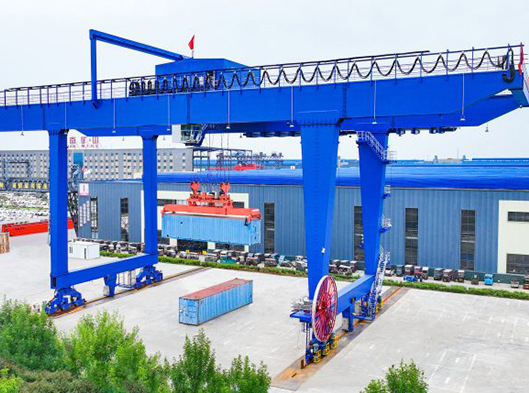

Rail Mounted Container Gantry Crane
Rail mounted container gantry cranes are mainly used for loading and unloading of various containers or railroad wide boxes in container yards such as ports, wharves, railroads and logistics. It can be equipped with various types of container spreaders to meet different lifting needs.
- Lifting Capacity(ton):30-70 ton
- Lifting Height(m):15.4 ~ 30 meter
- Span(m):20~40 meter
Product Description:
Rail-mounted container gantry cranes (RMG) run on rails using multiple sets of steel wheels and are driven by electric power. They are widely used in container yards or transfer stations in ports, terminals, railroads, and logistics centers, and are capable of efficiently handling and loading and unloading of ISO standard containers as well as railroad-wide containers. The RMGs are featured with multi-functionality, high efficiency, stable operation, ease of operation, and maintenance etc. They are also equipped with comprehensive safety indicators.
Features:
-
01
High-load handling capacity
Specifically designed for container handling, it features strong load-bearing capacity and can efficiently handle standard containers such as 20ft, 40ft, and 45ft, meeting the demands of heavy-duty logistics operations.
-
02
Precise positioning and anti-sway control
Equipped with an intelligent positioning system and anti-sway technology, it ensures rapid and stable alignment of the lifting equipment, reduces swaying, and enhances loading and unloading efficiency.
-
03
Automated and intelligent operation
Supports automatic stacking, intelligent path planning, remote monitoring, and other functions, reducing manual intervention and achieving efficient automated operations.
-
04
Robust and durable structure
Constructed with high-strength steel and optimized design, it offers excellent wind and earthquake resistance, suitable for long-term use in harsh environments such as ports and terminals.
-
05
Energy-saving and environmentally friendly technology
Utilizes variable frequency drives and energy recovery systems to reduce energy consumption and carbon emissions, aligning with modern green port operation standards.
-
06
Flexible Adaptability to Various Scenarios
Can be configured with rubber tires (RTG) or rail-mounted (RMG) options to meet the needs of different scenarios such as yards, railway hubs, and logistics centers.

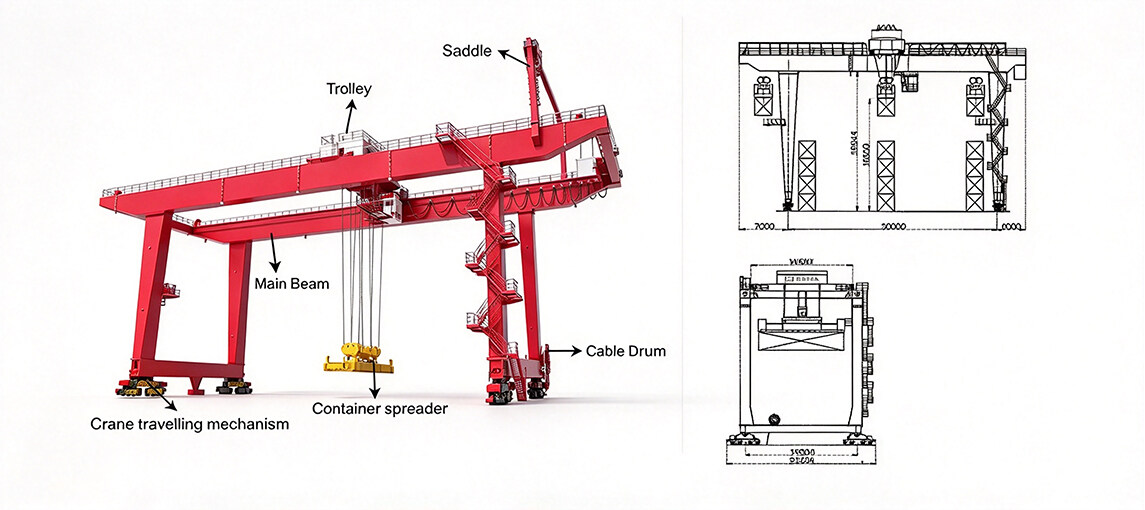

Container Gantry Crane Parts:
RMG rail-mounted container gantry crane adopts double main girder gantry structure, supported by several steel wheels, and equipped with single trolley winch system (optional mobile driver's room). The entire machine primarily consists of a gantry structure, hoisting mechanism, trolley running mechanism, power supply system, and special container spreader, as well as other components.
Applications:
- Ports and Transshipment Stations: RMGs are widely used in container ports and transshipment stations to quickly stack and transfer containers, optimizing space utilization and improving operational efficiency.
- Railroad Freight Yards: In railroad freight yards, RMG can efficiently handle wide-width containers, support the efficient connection between railroad and road transportation, and meet the needs of intermodal transportation.
- Warehousing and Distribution Centers: RMGs are widely used in large-scale warehousing and distribution centers, where container loading, unloading and stacking can be completed quickly and accurately.
- Industrial facilities: RMG can be customized according to the specific needs of industrial facilities, providing reliable and efficient container loading and unloading solutions to meet diverse industrial application scenarios.
Parameter:
| Cpapcity of Spreader | Ton | 30.5 | 35 | 40.5 | 50 | ||
| Working Duty | A6 | A6 | A6 | A6 | |||
| Span(m) | Meter | 35 | 35 | 35 | 35 | ||
| Base(m) | Meter | 16 | 16 | 16 | 16 | ||
| Lifting Height (m) | Meter | 15.4 | 15.4 | 18.3 | 18.3 | ||
| Speed | Hoisting | With Full Load | m/min | 12 | 12 | 18 | 18 |
| Max. working Lcad of Wheel | 24 | 24 | 36 | 36 | |||
| Trolley Tavelling | 60 | 60 | 70 | 70 | |||
| Gantry Traveling | 45 | 45 | 45 | 45 | |||
| Total Power | kW | ~200 | ~230 | -255 | ~300 | ||
| Max. working load of Wheel | kN | 260 | 260 | 280 | 300 | ||
| Crane Rail | P50 | P50 | P50 | QU80 | |||
| Power Supply | 3-phase AC 50Hz 380V | ||||||
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
